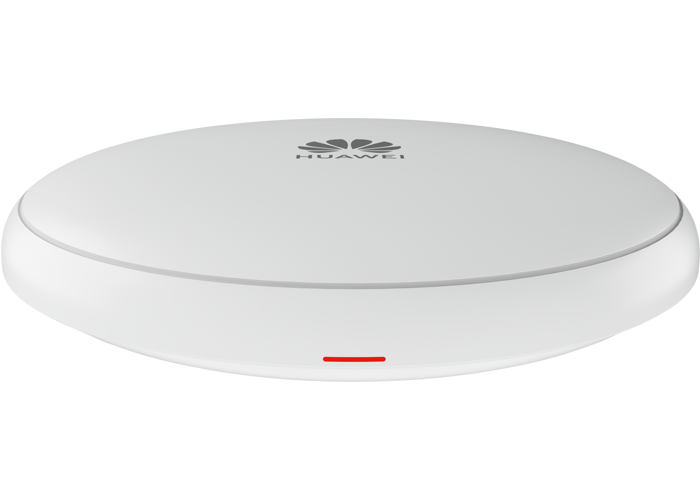

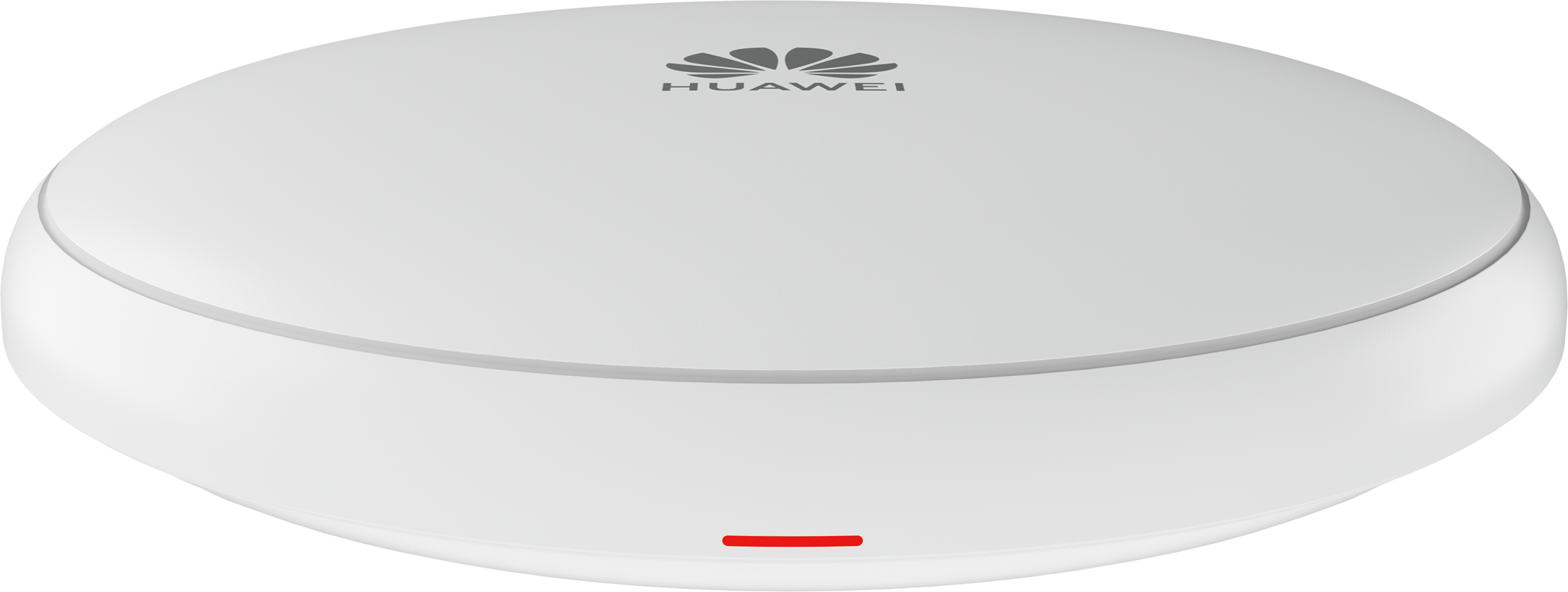

Huawei AirEngine 6776-57T
It is a next-generation indoor access point (AP) in compliance with Wi-Fi 7 (802.11be). It can simultaneously provide services on 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO), and 6 GHz (4x4 MIMO) frequency bands, supporting a total of 8 spatial streams and achieving a device rate of up to 13.66 Gbps. The AP is empowered by brand-new Wi-Fi 7 technologies and is equipped with built-in smart antennas to enable always-on Wi-Fi signals for users, significantly enhancing users' wireless network experience. These strengths make the AirEngine 6776-57T ideal for densely populated scenarios such as mobile offices, schools, and stadiums.
| Technical Data | ||
| Technical specifications | Dimensions (Diameter x Height) | 220 mm 45 mm |
| Weight | 0.75 kg | |

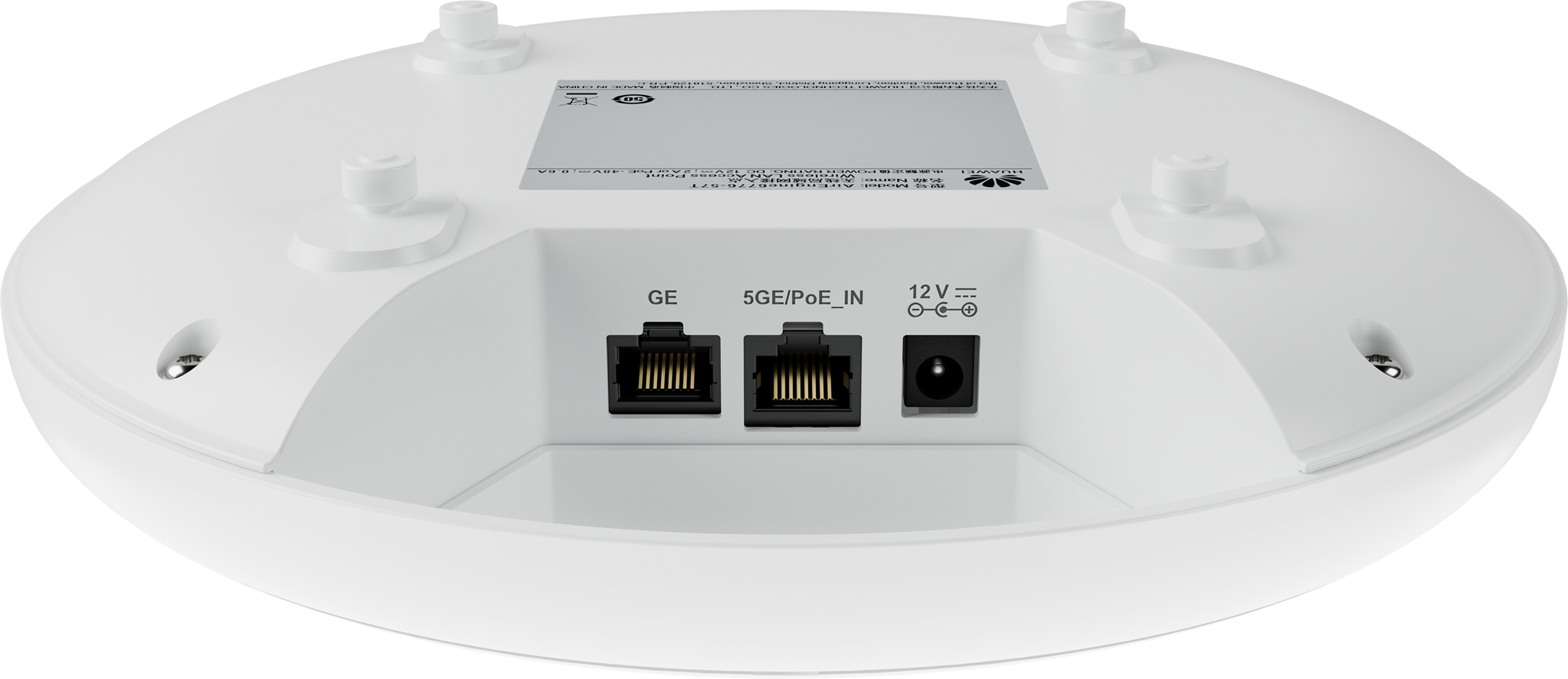

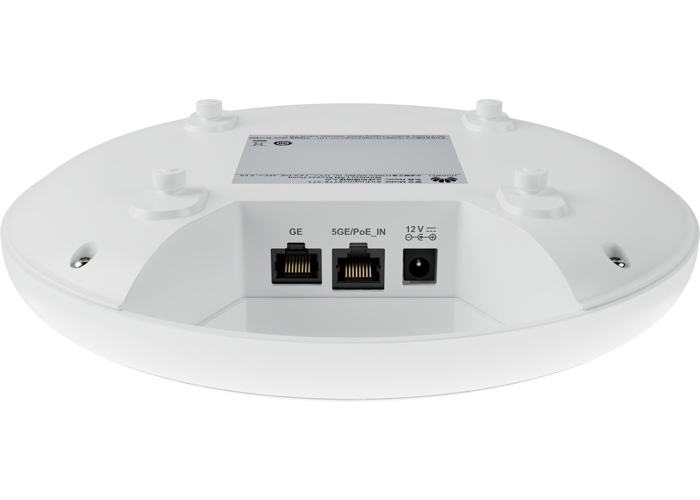

| Port type | 1x 100M/1GE/2.5GE/5GE electrical port 1 x 10M/100M/1GE electrical port 1 x USB port NOTE The 5GE electrical port supports PoE input | |
| Bluetooth | BLE 5.2 | |
| LED indicator | Indicates the power-on startup, running, alarm, and fault states of the system. | |
| Power specifications | Power input |
NOTE: When 802 3af power is supplied the AP will operate with restrictions, for example the USB port is unavailable, and the details refer to the Info- Finder |
| Maximum power consumption |
NOTE The actual maximum power consumption depends on local laws and regulations | |
| Environmental specifications | Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +70°C | |
| Operating humidity | 5% to 95% (non-condensing) | |
| Altitude | -60 m to +5000 m | |
| Atmospheric pressure | 53 kPa to 106 kPa | |
| Radio specifications | Antenna type | Built-in smart antennas |
| Antenna gain |
NOTE The preceding gains are the peak gains of single antenna | |
| Maximum number of SSIDs for each radio | 16 | |
| Maximum number of users | 1800 (600 per radio) NOTE The actual number of users varies according to the application environment | |
| Maximum transmit | 2.4 GHz 23 dBm (combined power) |
