AirEngine5760-51
To see the prices, please log in or register here.
Article Nr 02353GES-001

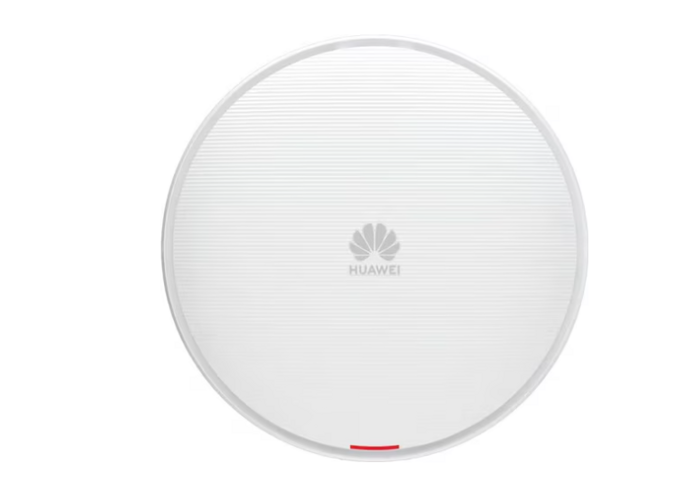

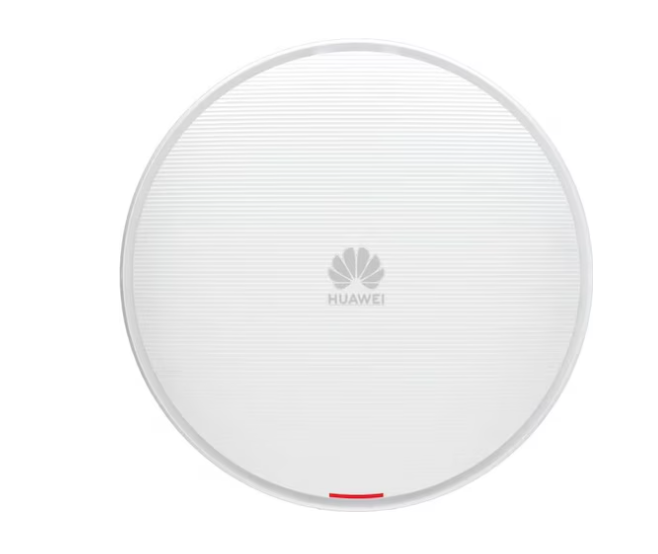

Huawei AirEngine 5760-51
It is a Wi-Fi 6 (802.11ax) standard wireless access point (AP) released by Huawei. AirEngine 5760-51 supports flexible switching between dual-radio and triple-radio modes to serve different customers and traffic types. The device can reach a rate of up to 5.375 Gbps, after loading the RTU license, the device can reach a rate of up to 5.95 Gbps. AirEngine 5760-51 has built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. These strengths make AirEngine 5760-51 ideal for scenarios such as enterprise offices, cafes, and leisure centers.
| Technical Data | |
| Dimensions (Diameter x Height) | 220 mm x 50 mm |
| Power Input | DC: 48 V ± 10% PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 (dual-radio mode) ≤ 1152 (triple-radio mode) Note: The actual number of users varies according to the environment. |

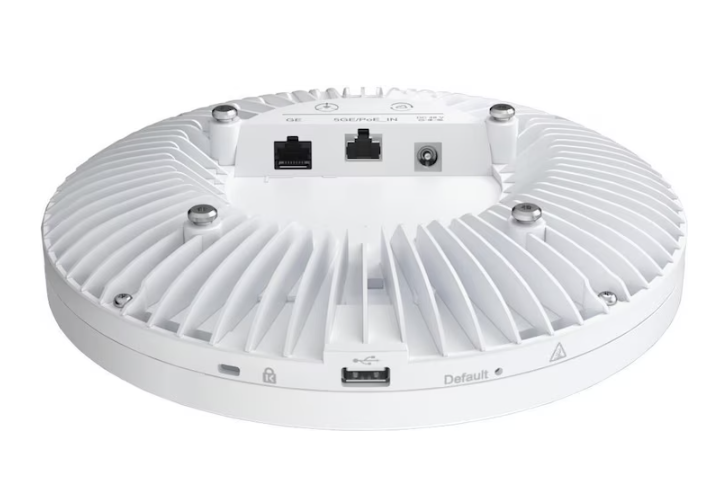

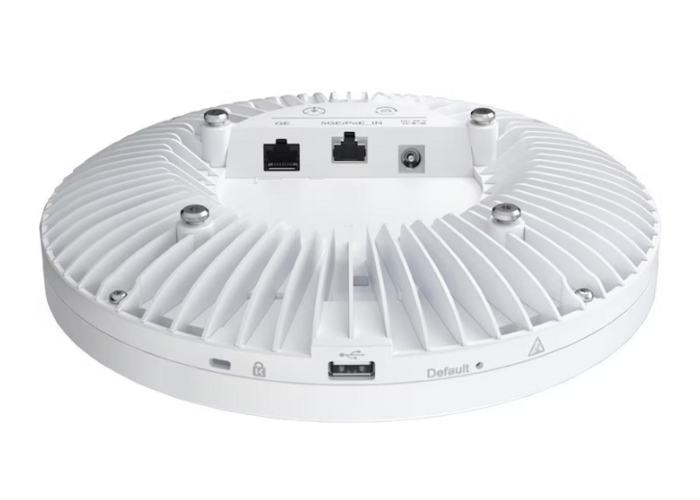

| Port | 1 x 5 GE and 1 x GE electrical |
| IoT | Built-in IoT slots |
| Operating Temperature | –10°C to 50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO: Spatial Streams | Basic capability: 2.4 GHz: 2x2:2; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 2x2:2 Capability upgrade via RTU license: 2.4 GHz: 4x4:4; 5 GHz: 4x4:4 2.4 GHz: 2x2:2; 5 GHz-0: 2x2:2; 5 GHz-1: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Data Rate | Basic capability: up to 5.37 Gbit/s RTU license upgrade: up to 5.95 Gbit/s |
