S5735I-S8U4XN-V2

To see the prices, please log in or register here.

Article Nr 98012066

Huawei CloudEngine S5735I S V2-Serie

Huawei CloudEngine S5735I S V2-Serie extended temperature switches (S5735I S V2 for short) are next generation standard Layer 3 gigabit switch es that provide flexible all gigabit access and 10GE uplink ports, and provide two stacking ports. Extended temperature switches have an industrial grade operating temperature range as well as professional outdoor surge protection to withstand harsh outdoo r cabinet environments. As such, they can be widely used in access scenarios such as Safe City and Ethernet to the x (ETTx).

Basic Information
Part Number	98012066
Model	CloudEngine S5735I-S8U4XN-V2

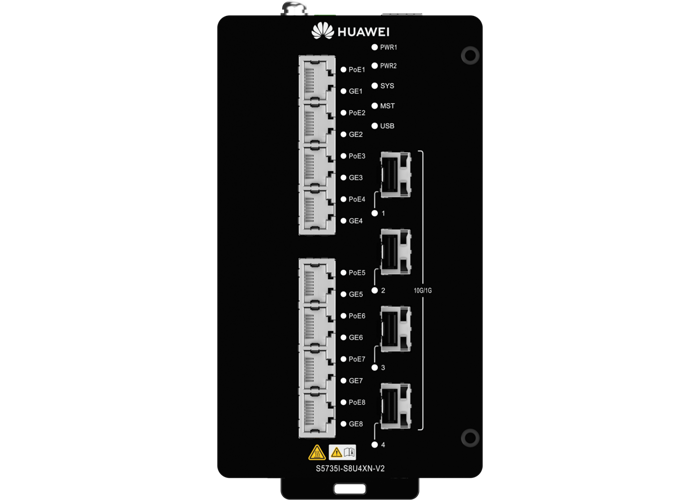

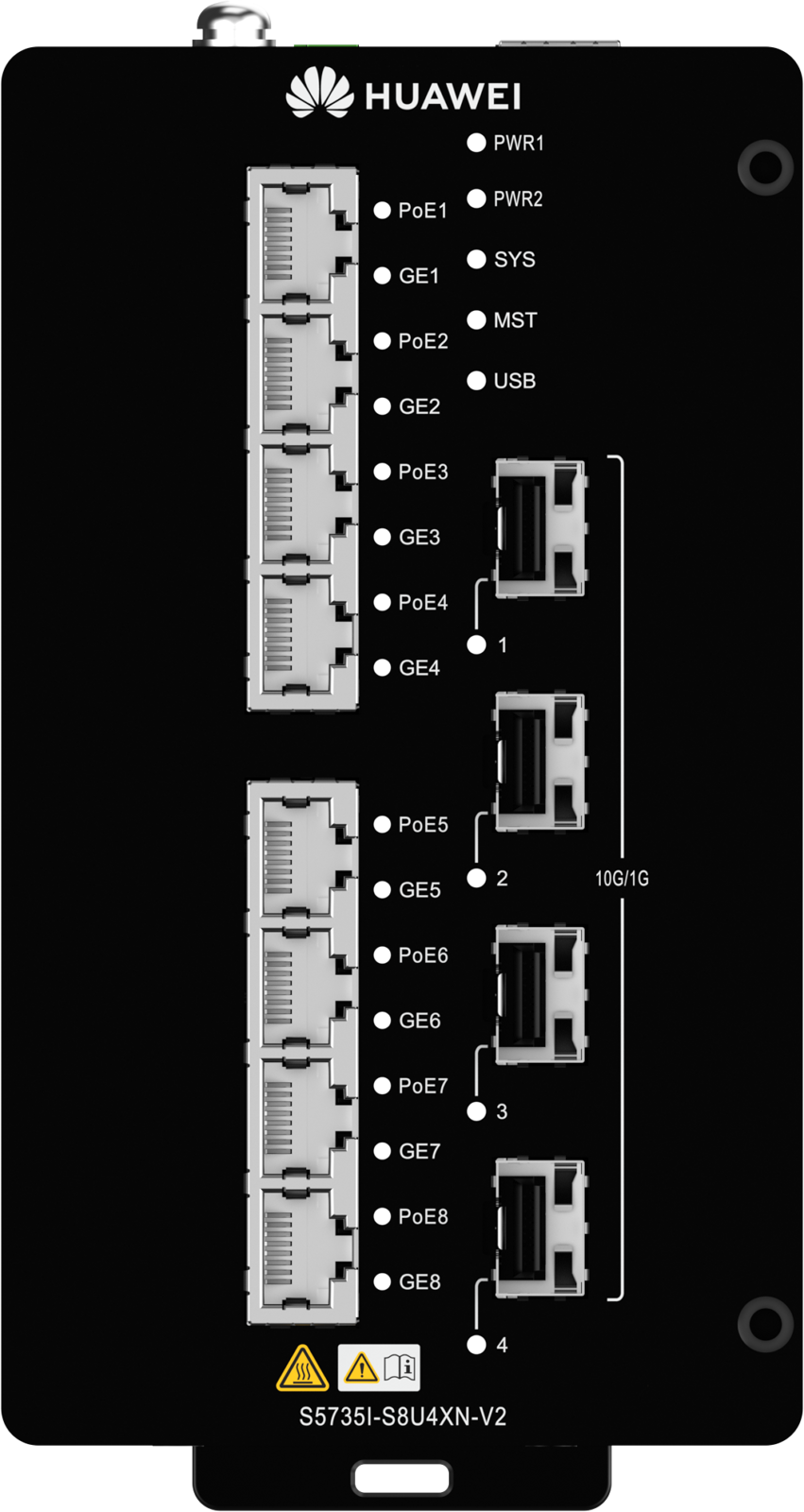

Description	S5735I-S8U4XN-V2 (810/100/1000BASE-T ports, 410GE SFP+ ports, PoE++, DIN Rail Mounting, Dual redundant 54 to 57V DC power, Fanless)
Technical Specifications
Chassis material	Metal
Height[mm]	150.0 mm
Depth[mm]	133.0 mm
Wide[mm]	86.0 mm
Chassis height[U]	3.65
Weight with packaging[kg(lb)]	2.21 (4.87)
Weight without packaging[kg(lb)]	1.86 kg (4.1 lb)
Maximum power consumption[W]	- Without PoE: 21.7 W - Full PoE load: 421.7 W (PoE: 400 W)
Typical power consumption[W]	20.45
Heat dissipation mode	Natural heat dissipation
Maximum heat dissipation[BTU/hour]	- Without PoE: 74.01 - Full PoE load: 1438.11 (PoE: 1364.10)
Typical heat dissipation[BTU/hour]	69.74

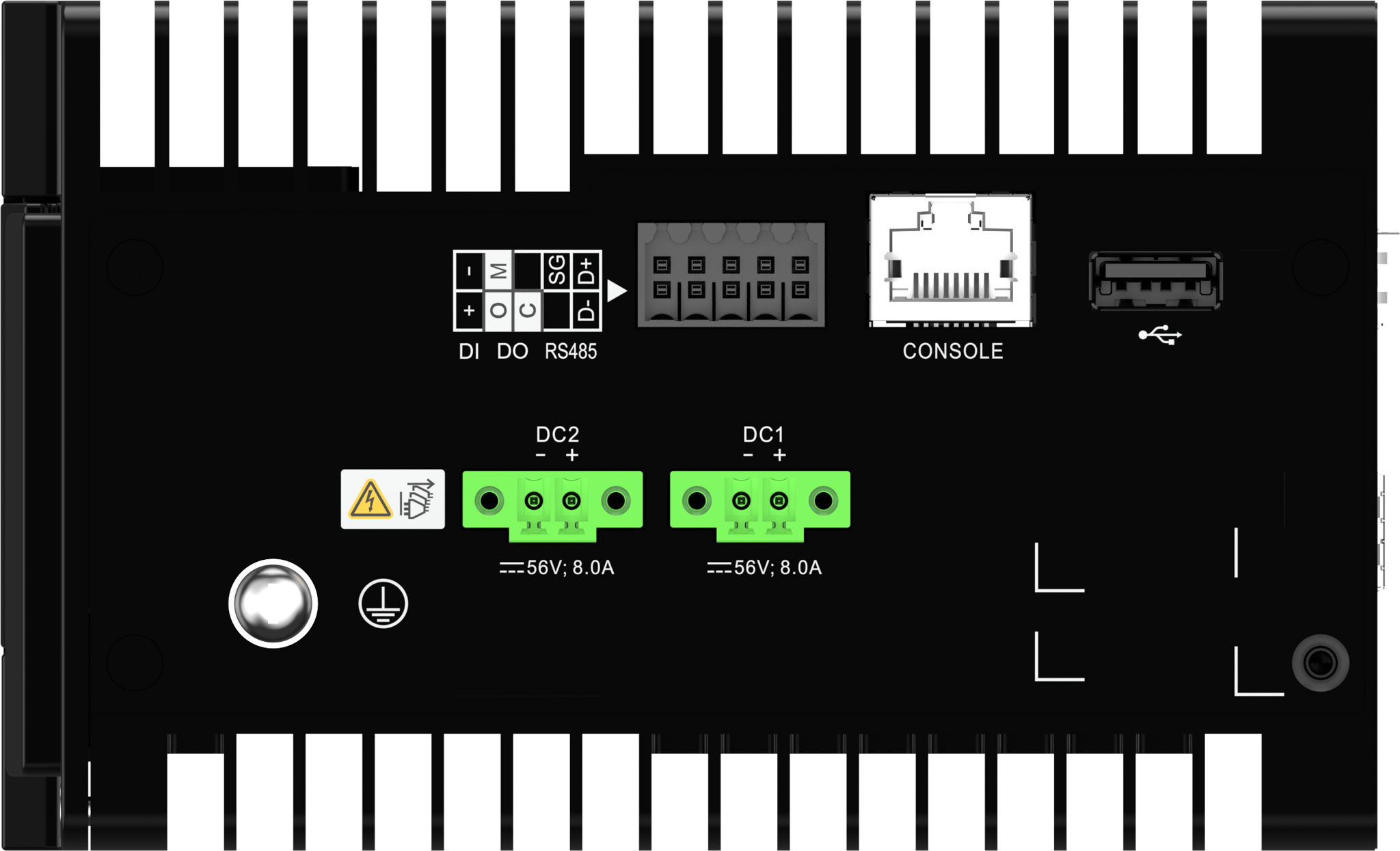

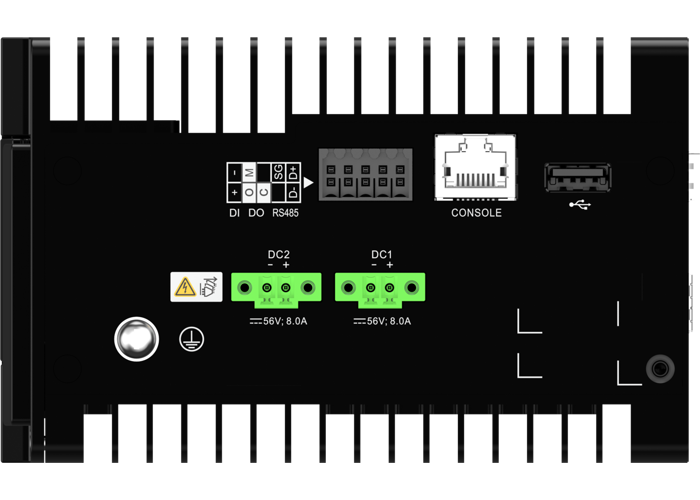

Power supply mode	DC external
Input voltage range[V]	DC input: 54 V DC to 57 V DC (PoE/PoE+/PoE++) 48 V DC (PoE)
Rated input voltage[V]	DC input: 56 V DC
Maximum input current[A]	8.0 A
Number of power slots	0
Number of card slots	0
Memory	2 GB
Flash memory	Physical space: 1 GB
Redundant power supply	1+1 Note: If the PAC240S56-CN power module is used, one PAC240S56-CN can supply power to only one S5735I-S8U4XN-V2 at a time.
Types of fans	None
Noise at normal temperature (acoustic power)[dB(A)]	Noise-free (no fans)
Noise at normal temperature (acoustic pressure)[dB(A)]	Noise-free (no fans)
Airflow direction	-
Storage temperature[°C(°F)]	-40°C to +85°C (-40°F to +185°F)
Long-term operating temperature[°C(°F)]	0–1800 m (0–5906 ft.) altitude, industrial optical modules: - Sealed cabinet: –40°C to +60°C (–40°F to +140°F) - Vented cabinet (≥ 80 LFM): –40°C to +70°C (–40°F to +158°F) - Blower-equipped cabinet (≥ 200 LFM): –40°C to +75°C (–40°F to +167°F) Configured with PEN optical modules: - Sealed cabinet: 0°C to +45°C (32°F to 113°F) - Vented cabinet (≥ 80 LFM): 0°C to +55°C (32°F to 131°F) - Blower-equipped cabinet (≥ 200 LFM): 0°C to +60°C (32°F to 140°F)
Restriction on the operating temperature variation rate[°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude[m(ft.)]	0–5000 m (0–16404 ft.)
MTBF[year]	89.43
MTTR[hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	12
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	4
Maximum number of GE ports	12
Maximum number of FE ports	8
10GE optical interface	4
1000M electrical interface	8
USB	Supported
Console port	RJ45
Eth Management port	Not supported
Service port surge protection[kV]	Common mode: ±7 kV
Power supply surge protection	DC power: ±2 kV in common mode and ±1 kV in differential mode
RPS input	Not supported
PoE	Supported
PoE power supply	Supported
