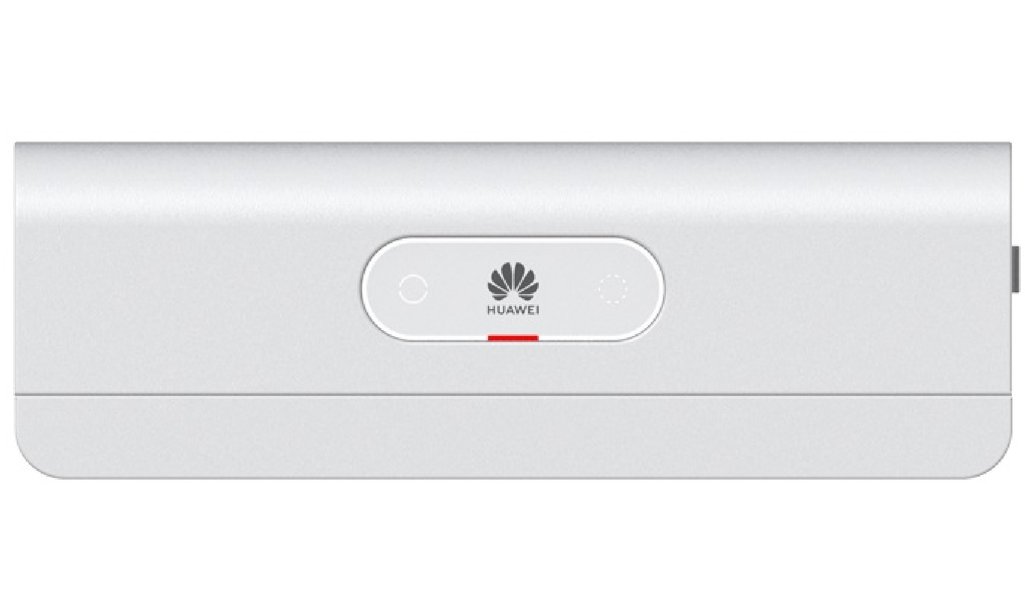

Huawei LUNA2000-10KW-C1

The Huawei Luna2000-10kW-C1 power module is a power module with a stand. Depending on the hybrid inverter selection, parallel operation of up to 4 battery towers is possible with the LUNA2000. It is not possible to mix the C1 power module with LUNA2000-5-E0 battery modules.

• Can be extended indefinitely
• Up to 2 battery towers with a total of 41.4 kWh can be cascaded
• New connector system replaces manual wiring of the individual elements
• Certified battery safety in accordance with VDE 2510-50
• The intelligent temperature regulation system automatically starts the cell heating at extremely low temperatures.
• Can operate in temperature ranges from -20 °C to +55 °C without worrying about extreme weather conditions and can withstand hail or storms thanks to its robust design
• <29 dB - Tested at a distance of 1 m and typical operating voltage.
• Scalable from 6.9 kWh to 20.7 kWh per tower
• Wireless connection between the modules
• 5-stage safety concept
• Emergency power capability (optional) 1-phase with Huawei backup box - only for Huawei SUN2000-3/4/5/6/8/10KTL-M1
