USG6530E-AC
To see the prices, please log in or register here.

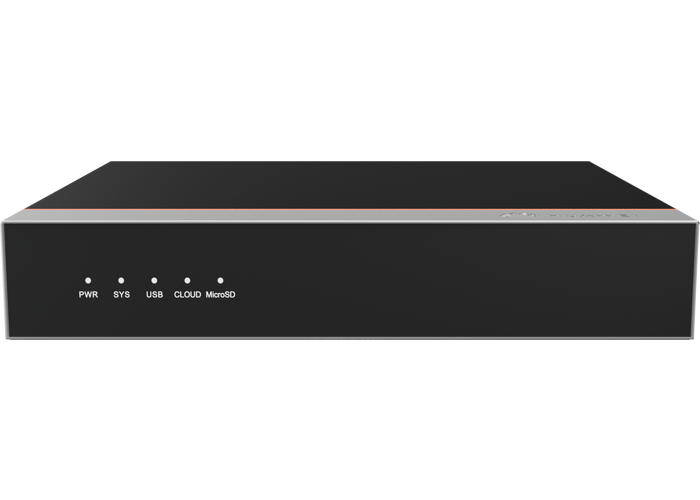

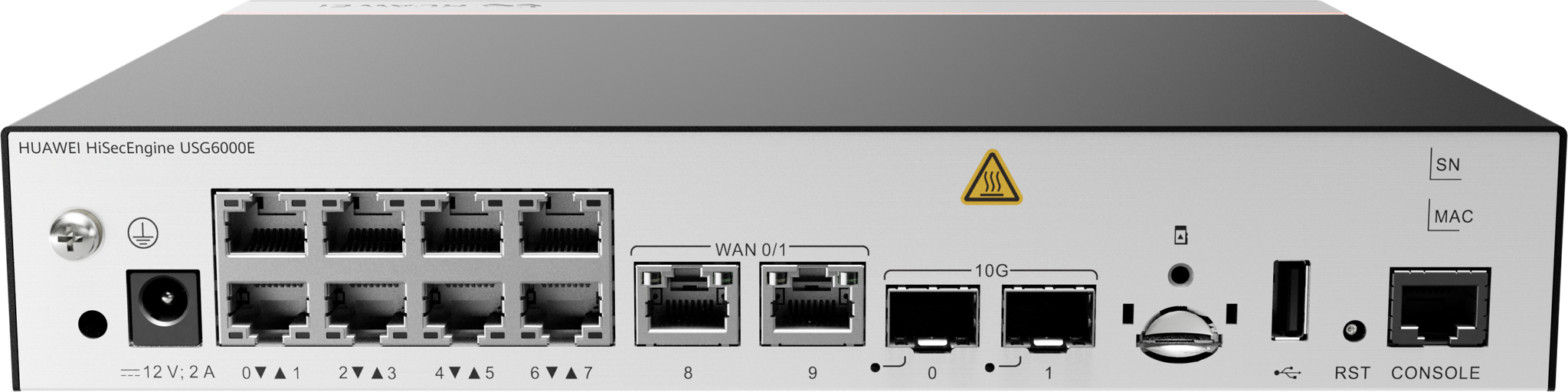

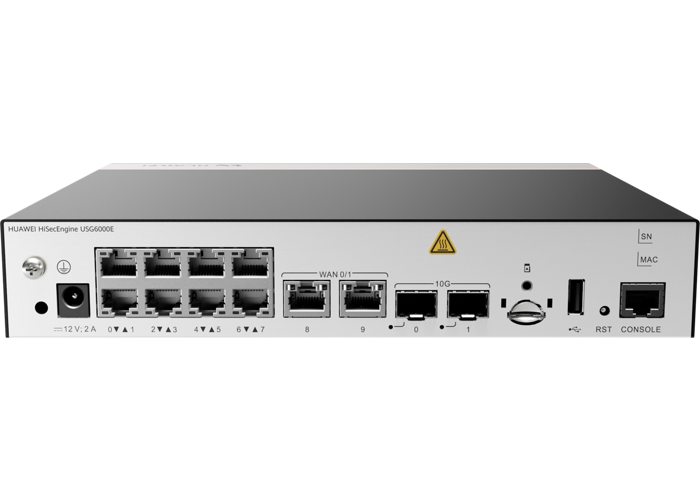

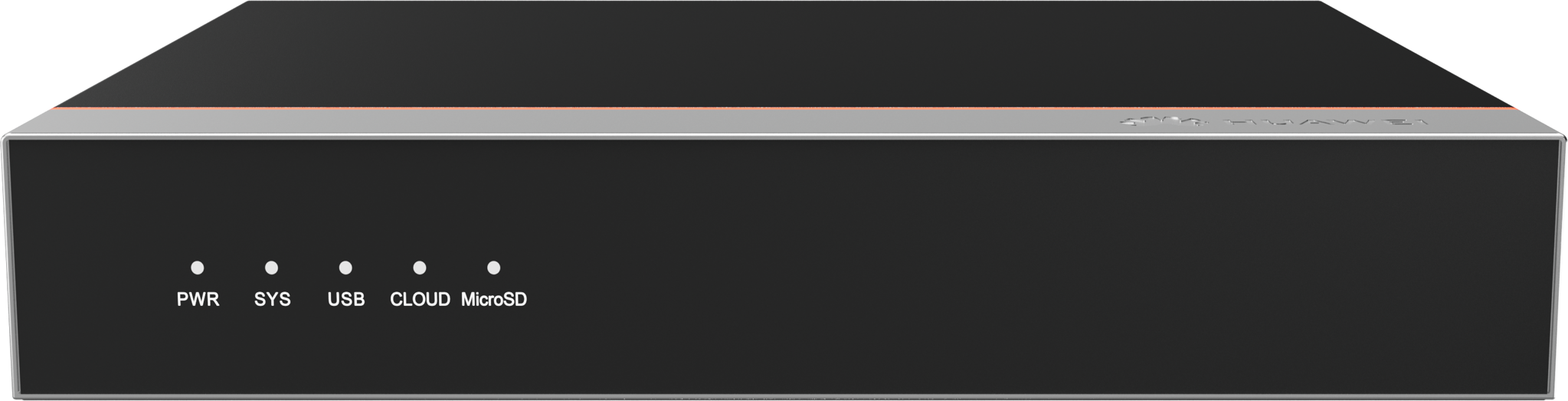

Huawei USG6530E-AC
They are new-generation desktop firewalls designed for small enterprises, industry branches, and chain business organizations. In addition to the traditional firewall management mode, the cloud-based management mode is supported. The cloud-based management mode provides plug-and-play, automated service configuration, automated and visualized O&M, and big data analytics for a large number of branches to access the network securely. The Huawei-proprietary network processing chip provides pattern matching and encryption/decryption service processing acceleration capabilities, which greatly improve the performance for firewalls to process content security detection and IPSec services.
| Basic Information | |
| Part Number | 02352QVD-002 |
| Model | USG6530E-AC |
| Description | USG6530E AC Host(10*GE RJ45+2*10GE SFP+,1*Adapter) |
| First supported version | V600R007C20SPC600 |
| Technical Specifications | |
| Installation Type | Rack,Work bench,Against the wall |
| Cabinet installation standard | Cabinet with a depth of 600 mm or above |
| Wide [mm] | 250 mm |
| Depth [mm] | 210 mm |
| Height [mm] | 43.6 mm |
| Chassis height [U] | 1 |
| Weight without packaging [kg(lb)] | 1.57 (3.46) |
| Weight with packaging [kg(lb)] | 2.3 (5.07) |
| Maximum power consumption [W] | 22.3 |
| Maximum heat dissipation [BTU/hour] | 76.08 |
| Heat dissipation mode | Has no fan and uses natural cooling. |
| Power supply mode | Power adapter external |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum output power [W] | 36 |
| Maximum input current [A] | 1 |
| CPU | 1 CPU, 4 cores/CPU, up to 1.2 GHz |
| Memory | DDR4 2 GB |
| NOR Flash | 64 MB |
| NAND Flash | 2 GB |
| Hard disk | Optional. Purchase one 64-GB micro SD card from Huawei as required. |
| Number of power modules | 1 |
| Number of fan modules | 0 |
| Types of fans | None |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C |
| Storage temperature [°C(°F)] | -40°C to 70°C |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0 m to 5000 m |
| Storage altitude [m(ft.)] | 0 m to 5000 m |
| MTBF [year] | 57.29 |
| MTTR [hour] | 2 |
| Console port | RJ45 |
