AirEngine5773-21
To see the prices, please log in or register here.

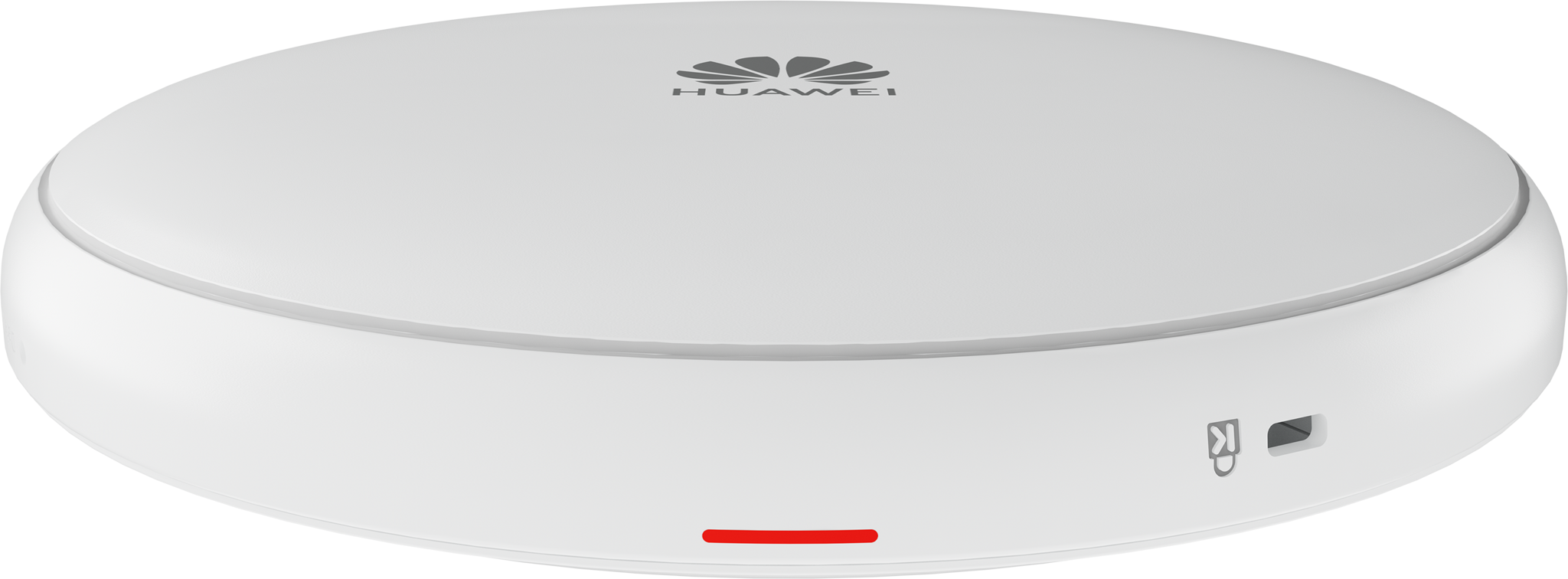

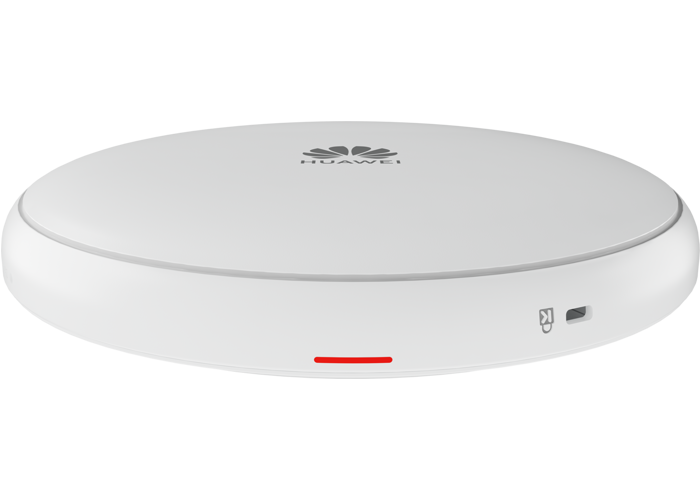

Huawei AirEngine 5773-21
It is a next-generation indoor access point (AP) in compliance with Wi-Fi 7 (802.11be). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, supporting a total of 4 spatial streams and achieving a device rate of up to 3.57 Gbps. The AP is empowered by brand-new Wi-Fi 7 technologies and is equipped with built-in smart antennas to enable always-on Wi-Fi signals for users, significantly enhancing users' wireless network experience. Additionally, it has a compact size, facilitating flexible deployment and saving customer investment. These strengths make the AirEngine 5773-21 ideal for indoor coverage scenarios such as SMB workplaces, hospitals, and shopping malls and supermarkets.
| Technical Data | ||
| Technical specifications | Dimensions (Diameter X Height) | 180 mm x 35 mm |
| Weight | 1.4 kg | |

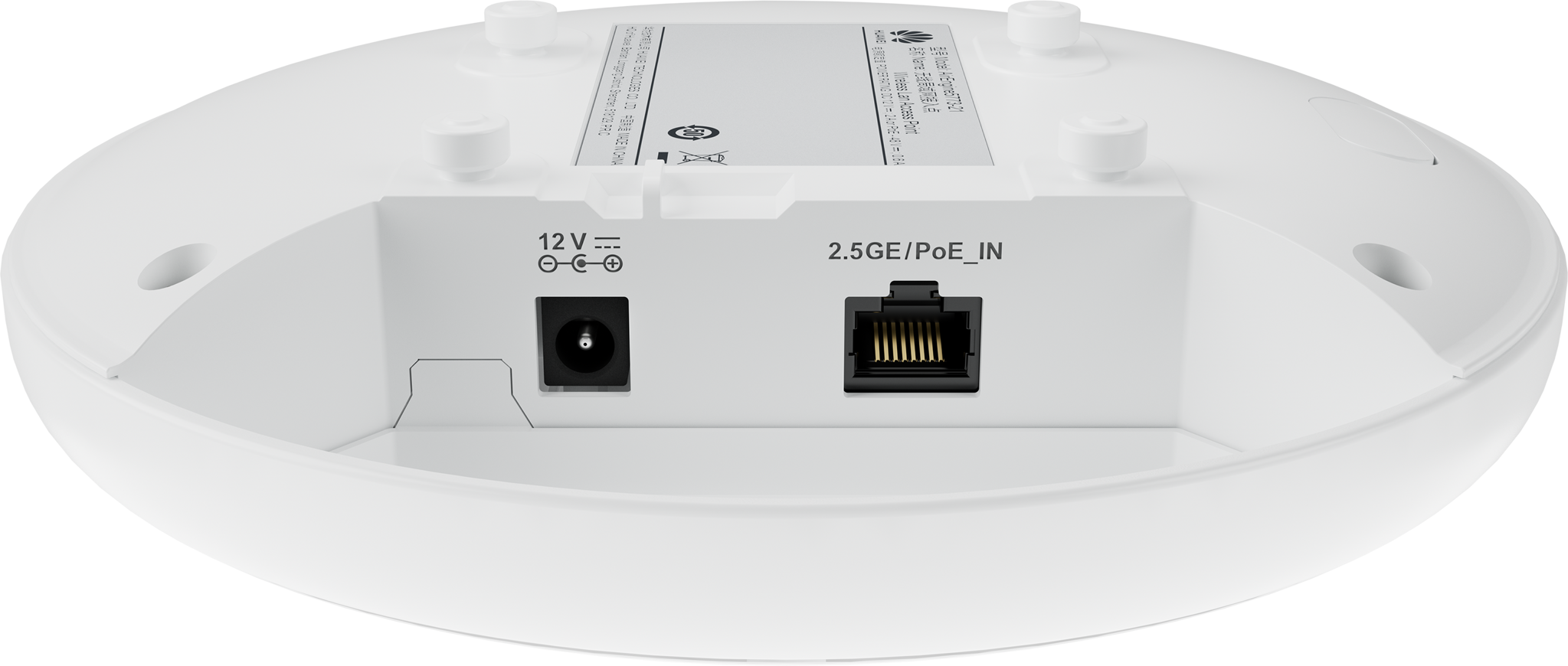

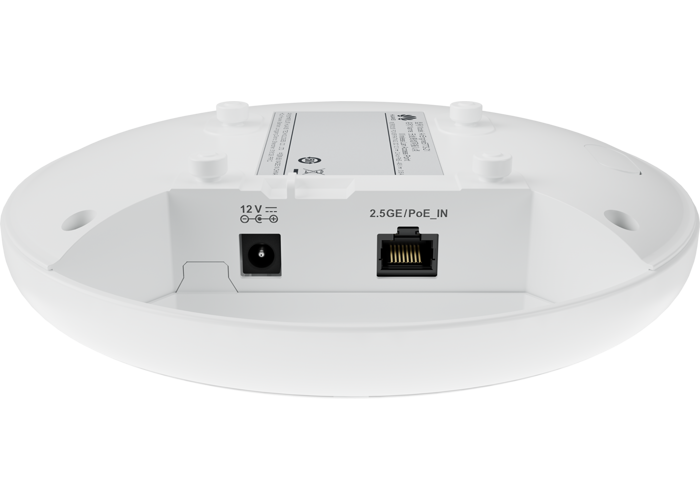

| Interface type | 1 x 100M/1GE/2.5GE electrical port 1 x USB port NOTE: The 2.5GE electrical port supports PoE input. | |
| Bluetooth | BLE 5.4 | |
| Nearlink | SLE1.0 | |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system. | |
| Power specifications | Power input | DC: 12 V ± 10% PoE power supply: in compliance with 802.3at/af NOTE: When 802.3af power is supplied, the AP will operate with restrictions, for example the USB port is unavailable, and the details refer to the Info-Finder. |
| Maximum power consumption | 13.60 W (excluding USB) NOTE: The actual maximum power consumption depends on local laws and regulations. | |
| Environmental specifications | Operating temperature | -10°C to +50°C |
| Storage temperature | -40°C to +70°C | |
| Operating humidity | 5% to 95% (non-condensing) | |
| Altitude | -60 m to +5000 m | |
| Atmospheric pressure | 53 kPa to 106 kPa | |
| Radio specifications | Antenna type | Built-in smart antennas |
| Antenna gain | 2.4GHz: 4dBi 5GHz: 5dBi NOTE: The preceding gains are the peak gains of a single antenna. | |
| Maximum number of SSIDs for each radio | 15 | |
| Maximum transmit power | 2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) NOTE: The actual transmit power depends on local laws and regulations. |
