AirEngine6761-22T
To see the prices, please log in or register here.

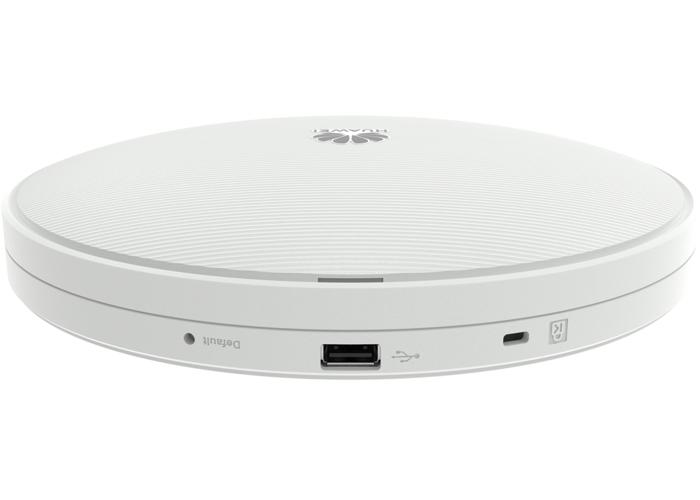

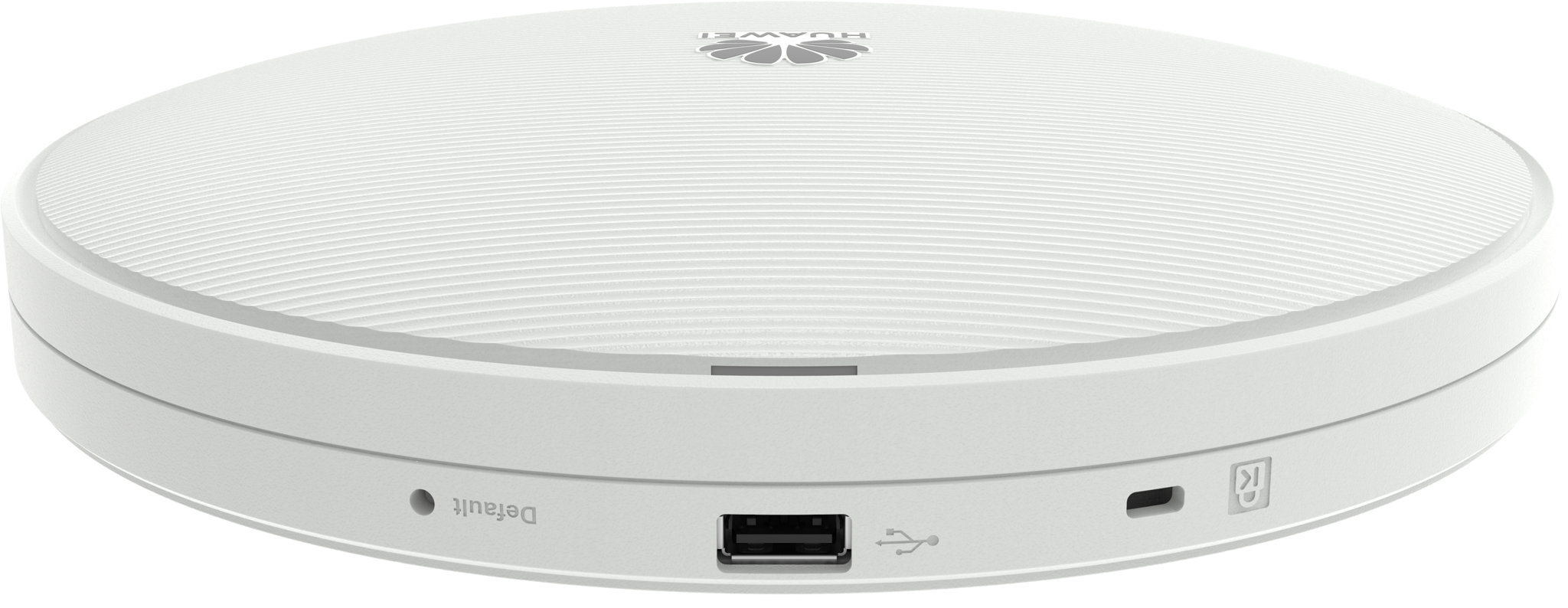

Huawei AirEngine 6761-22T
It is an indoor Wi-Fi 6E AP in compliance with Wi-Fi 6 (802.11ax). It can simultaneously provide services on 2.4 GHz, 5 GHz, and 6 GHz frequency bands, achieving a device rate of up to 6.575 Gbit/s. The 6 GHz frequency band has more channels and wider spectrum, enabling the AP to achieve higher speeds, larger capacity, and less interference. Therefore, it can meet the growing demand of bandwidth-hungry video, increasing the numbers of Wi-Fi and IoT terminals, and support new use cases that demand multi-gigabit speeds like HD video and AR/VR applications. Built-in smart antennas of the AP enable always-on Wi-Fi signals for users, significantly enhancing users' wireless experiences. These strengths make the AirEngine 6761-22T ideal for scenarios with high-density rooms such as enterprise offices, educational institutions, stadiums, and manufactures.
| Technical Data | ||
| Technical specifications | Dimensions (Diameter × Height) | Φ220 mm x 50 mm |
| Weight | 1.07 kg | |

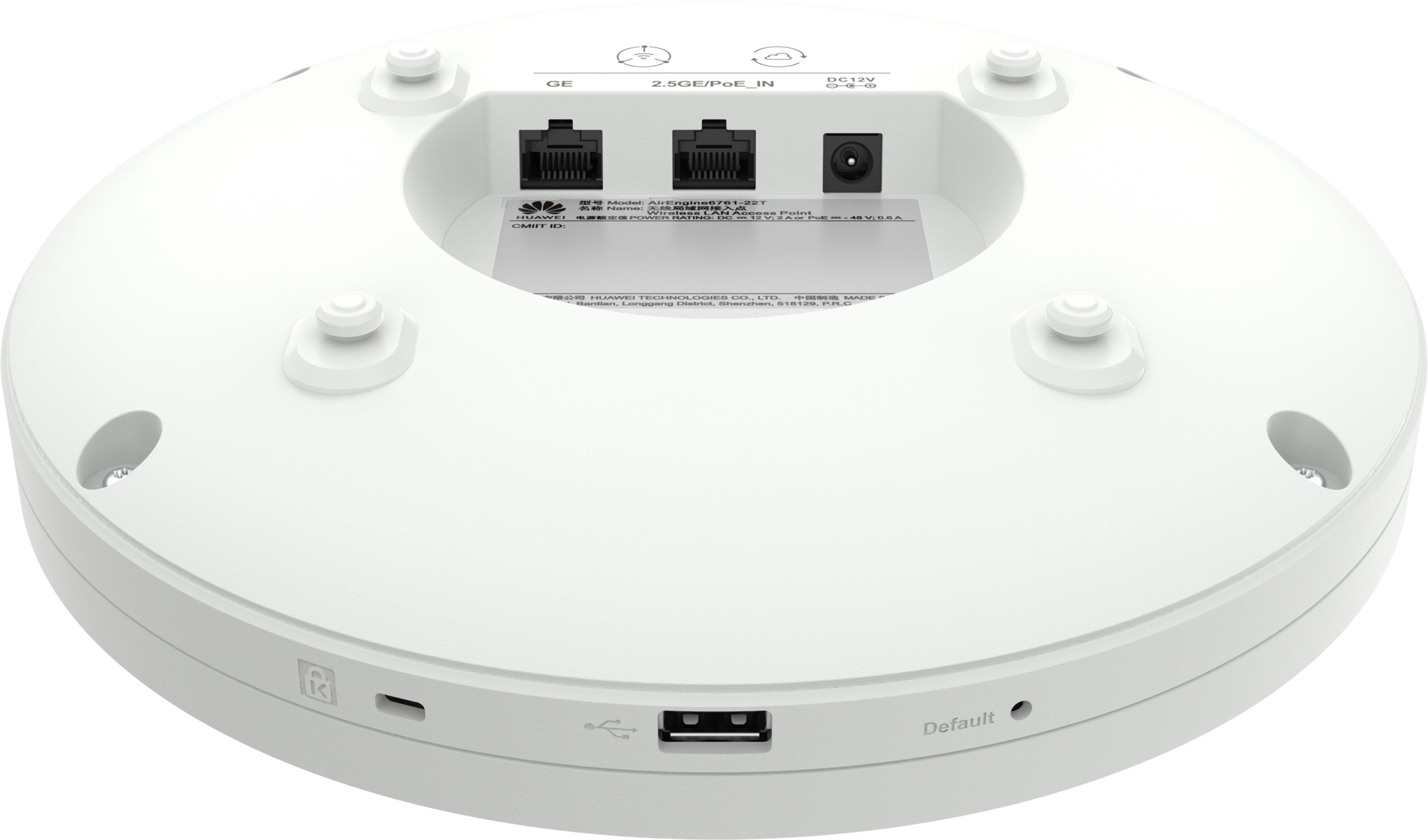

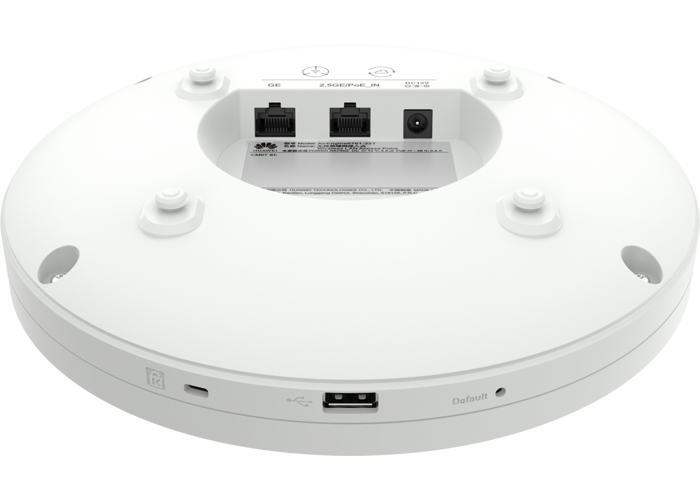

| Interface type | 1 x 100M/1G/2.5GE (RJ45) 1 x 10M/100M/1GE (RJ45) 1 x USB NOTE: 2.5GE supports PoE input. | |
| Bluetooth | BLE 5.2 | |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system | |
| Power specifications | Power input | DC: 12 V ± 10% PoE power supply: In compliance with 802.3at NOTE: In 802.3af power supply mode, some functions of the AP may be restricted, for example, the USB port is unavailable. For details, see Info-Finder. |
| Maximum power consumption | 24.2 W (excluding USB) with 802.3at 12.9 W (excluding USB) with 802.3af NOTE: The actual maximum power consumption depends on local laws and regulations. In 802.3af power supply mode, some functions of the AP may be restricted, for example, the USB port is unavailable. For details, see Info-Finder. | |
| Environmental specifications | Operating temperature | -10℃ to +50℃ |
| Storage temperature | -40°C to +70°C | |
| Operating humidity | 5% to 95% (non-condensing) | |
| Altitude | -60 m to +5000 m | |
| Atmospheric pressure | 53 kPa to 106 kPa | |
| Radio specifications | Antenna type | Built-in smart antennas (omnidirectional) |
| Antenna gain | 2.4 GHz: 4 dBi 5 GHz: 5 dBi 6 GHz: 5 dBi NOTE: The gains above are the single-antenna peak gains. The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 2 dBi in 2.4 GHz, 3 dBi in 5 GHz, 3 dBi in 6 GHz. | |
| Maximum number of SSIDs for each radio | ≤ 16 | |
| Maximum number of users | ≤ 1536 (512/Radio) NOTE: The actual number of users varies according to the environment | |
| Maximum transmit power | 2.4 GHz: 23 dBm (combined power) 5 GHz: 23 dBm (combined power) 6 GHz: 25 dBm (combined power) NOTE: The actual transmit power depends on local laws and regulations. | |
| Power increment | 1 dBm |
