Article Nr 02353KCN-001

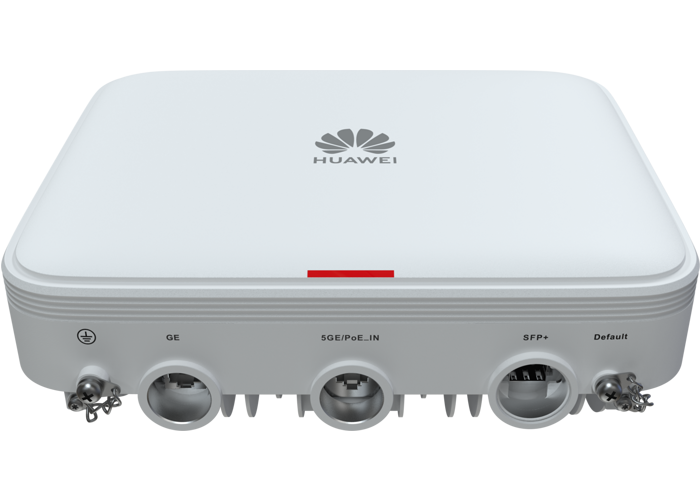

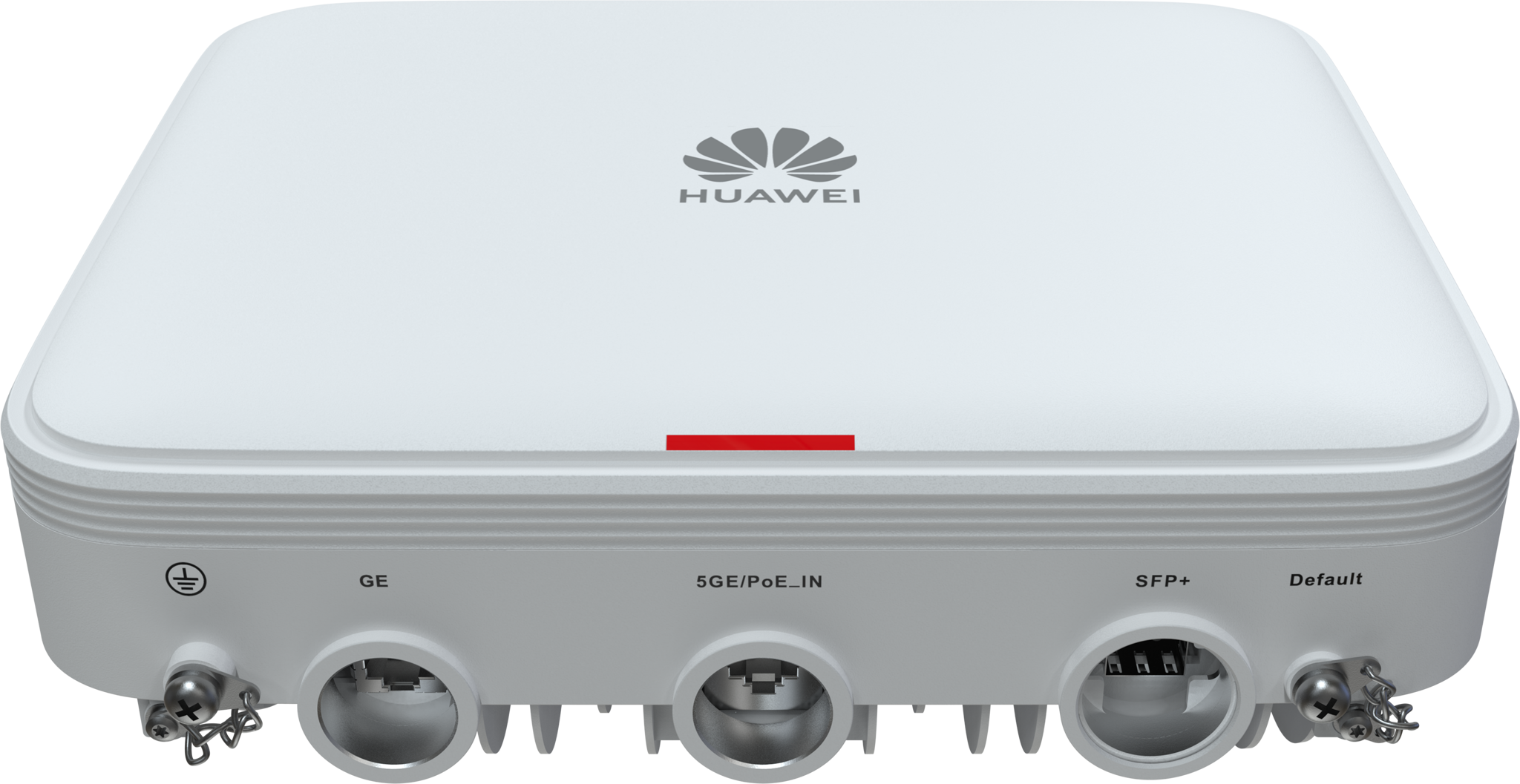

Huawei AirEngine 6760R-51E
AirEngine 6760R-51 and AirEngine 6760R-51E are Huawei's Wi-Fi 6 (802.11ax) outdoor access points (APs). They support 2.4 GHz (4x4) + 5 GHz (4x4) radios, achieving a maximum rate of 5.95 Gbps. These outdoor APs stand out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong urge protection capability. AirEngine 6760R-51 and AirEngine 6760R-51E provide uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers' investment. These strengths make Huawei's Wi-Fi 6 outdoor APs ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.
| Technical Data | |
| Dimensions (H x W x D) | 88 mm x 270 mm x 220 mm |
| Power Input | PoE power supply: in compliance with IEEE 802.3bt |
| Maximum Number of Users | ≤ 1024 Note: The actual number of users varies according to the environment |
| Port | 1 x 5 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+ |
| Built-in Bluetooth | BLE 5.0 |
| Operating Temperature | –40°C to 65°C |

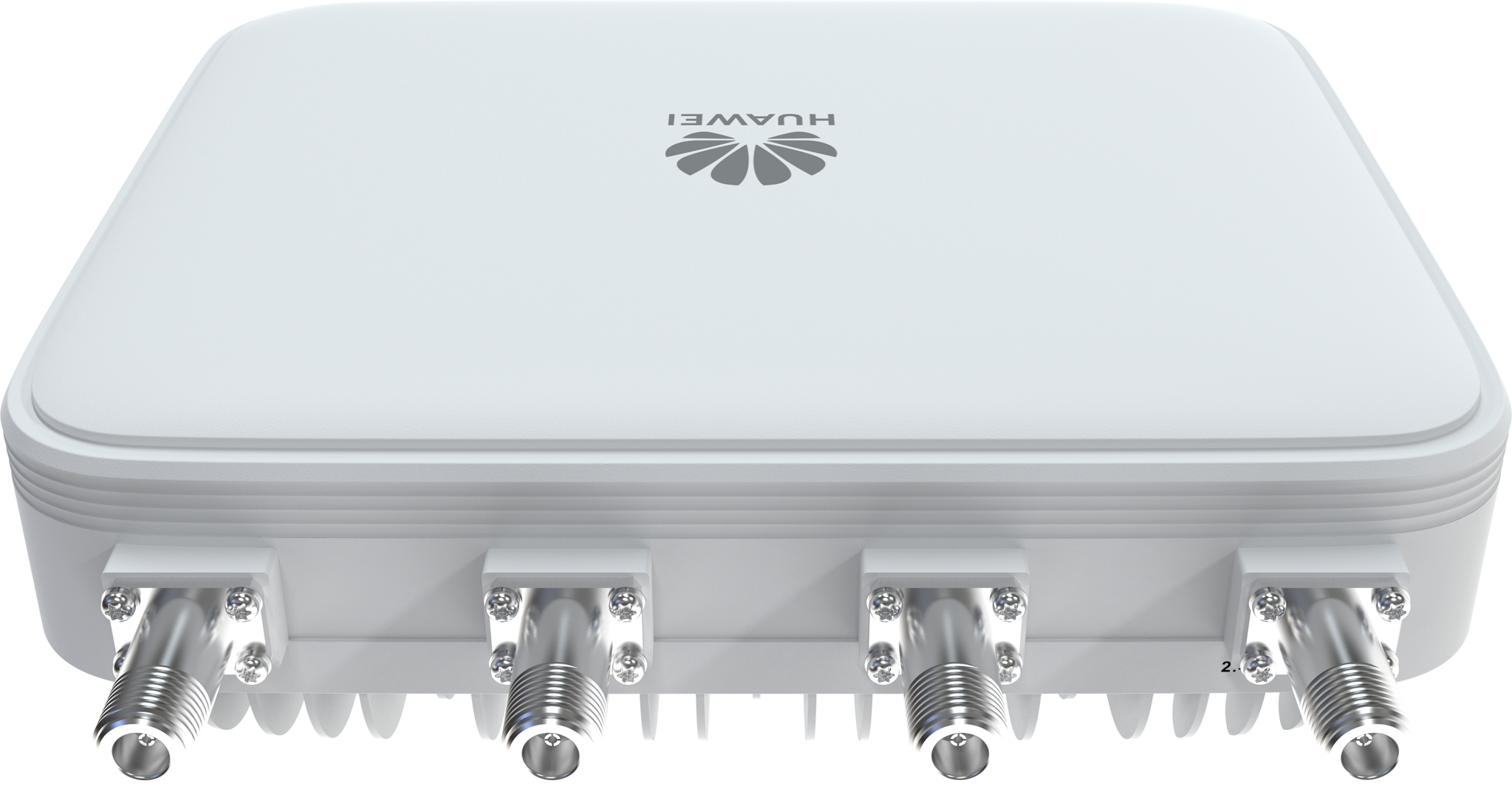

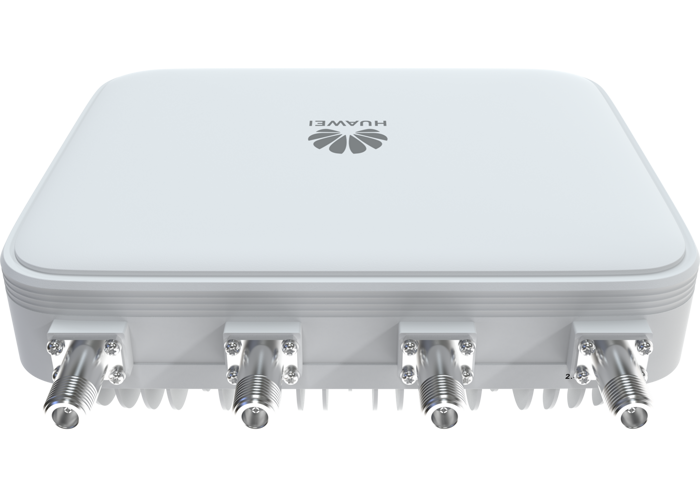

| Antenna Type | AirEngine 6760R-51: Built-in Antennas AirEngine 6760R-51E: External antennas |
| MIMO: Spatial Streams | 2.4 GHz: 4x4:4; 5 GHz: 4x4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 5.95 Gbit/s |
