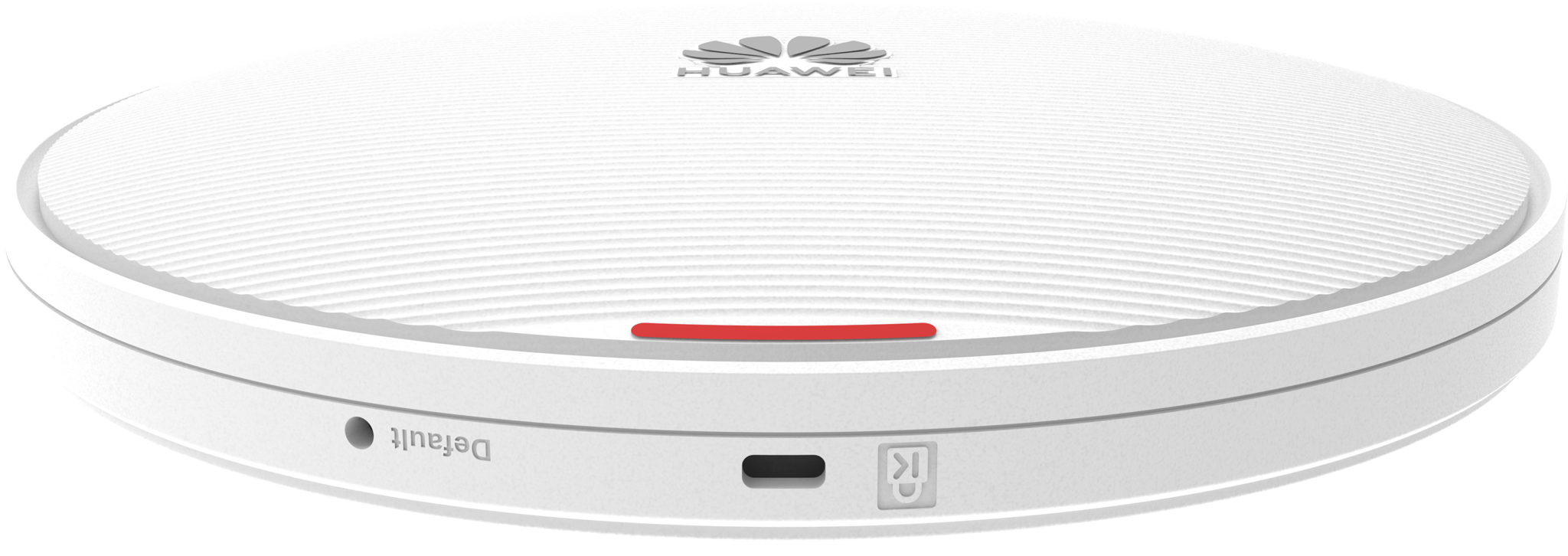

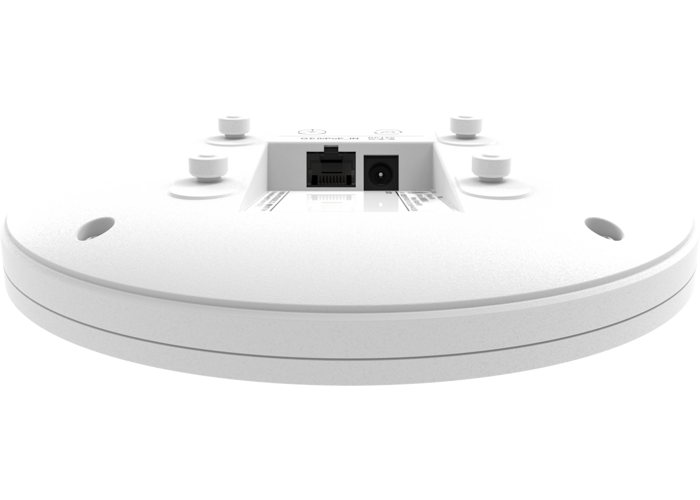

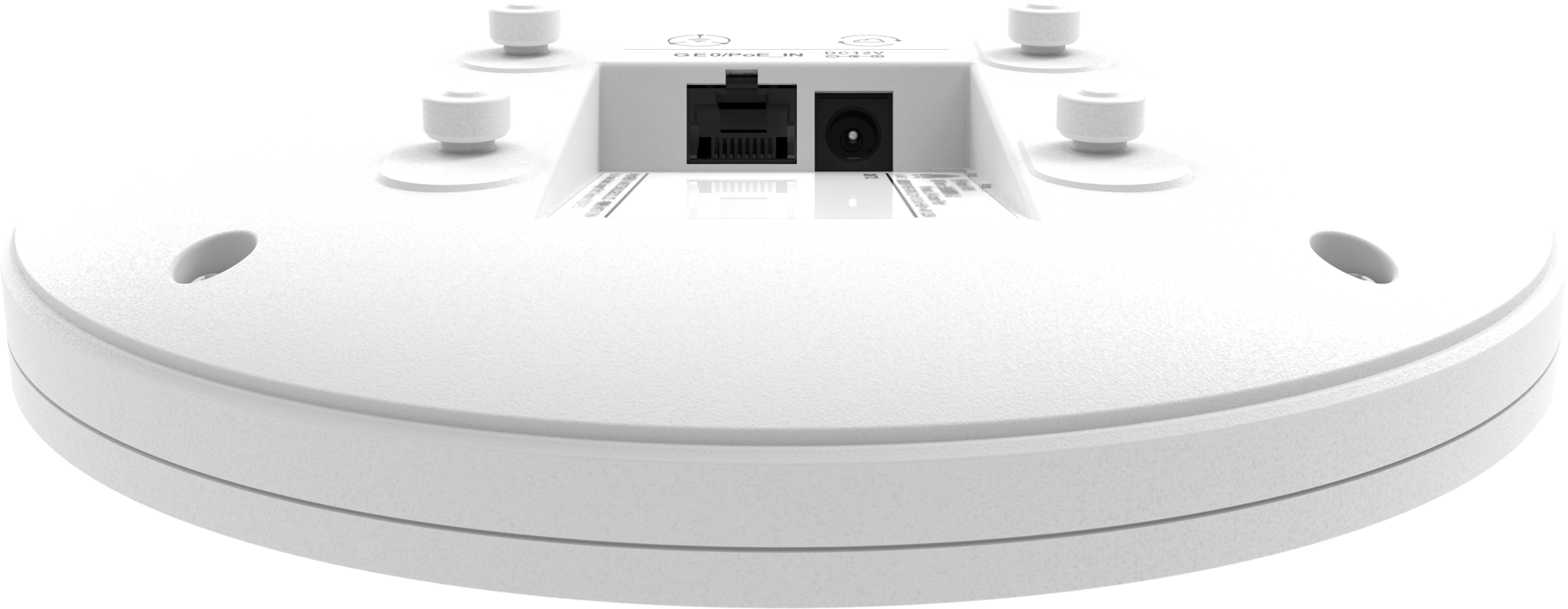

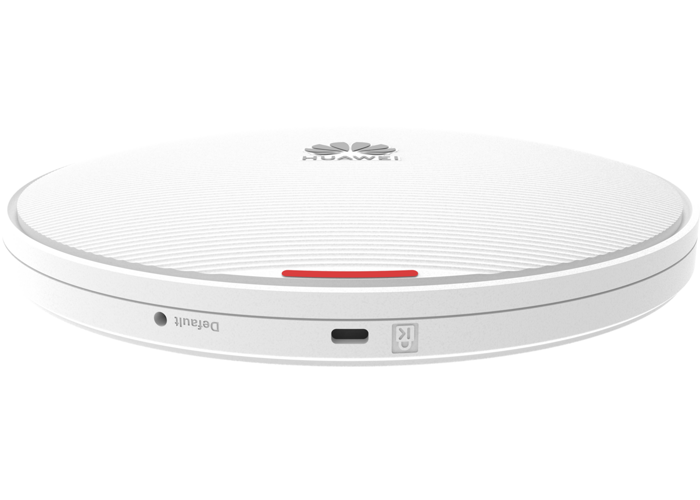

Huawei AirEngine 5762-15HW
It is a Wi-Fi 6 (802.11ax) wall plate access point (AP). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, achieving a device rate of up to 2.975 Gbps. This AP features high bandwidth and high concurrency with compact size, facilitating flexible deployment and saving customers' investment. These strengths make the AirEngine 5762-15HW ideal for indoor coverage scenarios of small and medium-sized enterprise offices, and higher education.
| Technical Data | |
| Dimensions (H x W x D) | 160 x 86 x 45 mm |
| Power Input | DC: 12 V ±10% PoE power supply: in compliance with 802.3at/af |
| Maximum Power Consumption | 15 W (excluding USB) Note: The actual maximum power consumption depends on local laws and regulations. |
| Maximum Number of Users | ≤ 256 Note: The actual maximum number of users varies according to the environment. |
| Operating Temperature | 0–40°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2x2:2; 5 GHz: 2x2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 2.975 Gbit/s |
