AirEngine5761-21
To see the prices, please log in or register here.
Article Nr 02354VQK

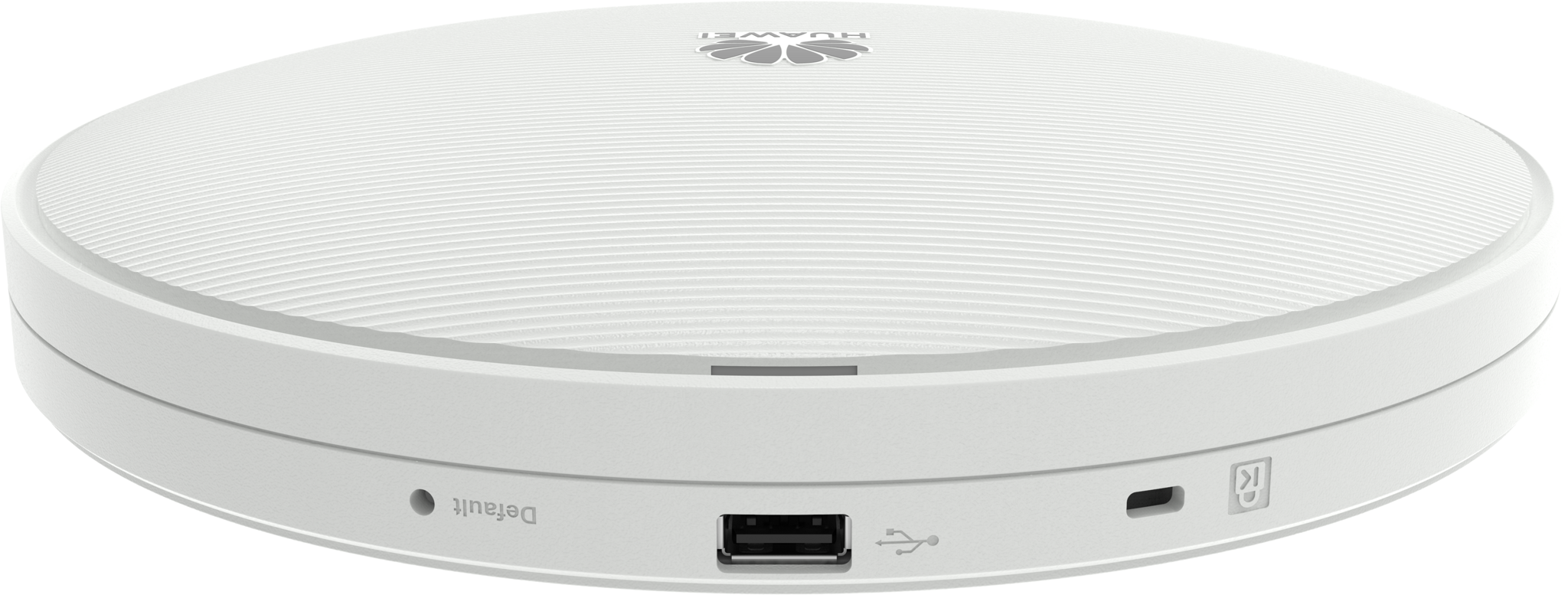

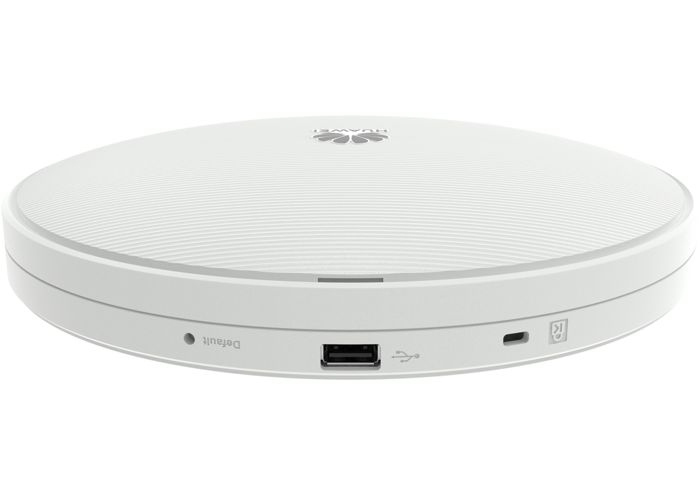

Huawei AirEngine 5761-21
EOS 31.12.2030
It is an indoor AP in compliance with Wi-Fi 6 (802.11ax). It can simultaneously provide services on 2.4 GHz (2x2 MIMO) and 5 GHz (4x4 MIMO) frequency bands, achieving a device rate of up to 5.375Gbps. Built-in smart antennas of the AP enable always-on Wi-Fi signals for users, significantly enhancing users' wireless experiences. These strengths make AirEngine 5761-21 ideal for scenarios with high-density rooms such as small and midsize enterprise offices, education institutions, and retail outlets.
| Technical Data | ||
| Technical specifications | Dimensions (Diameter × Height) | Φ220×50mm |
| Weight | 1.06 kg | |

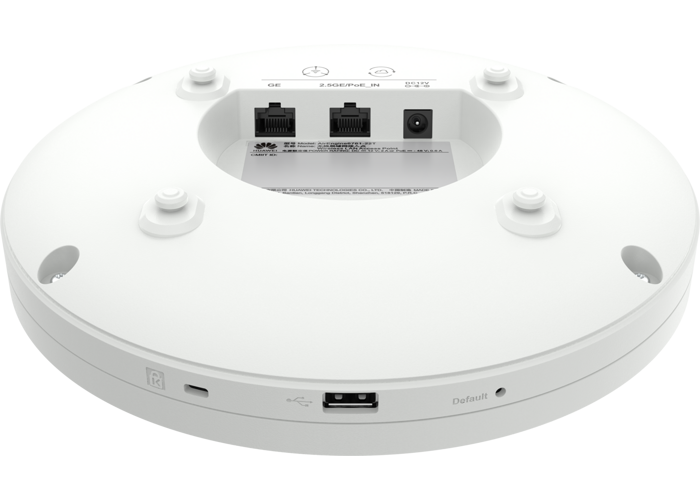

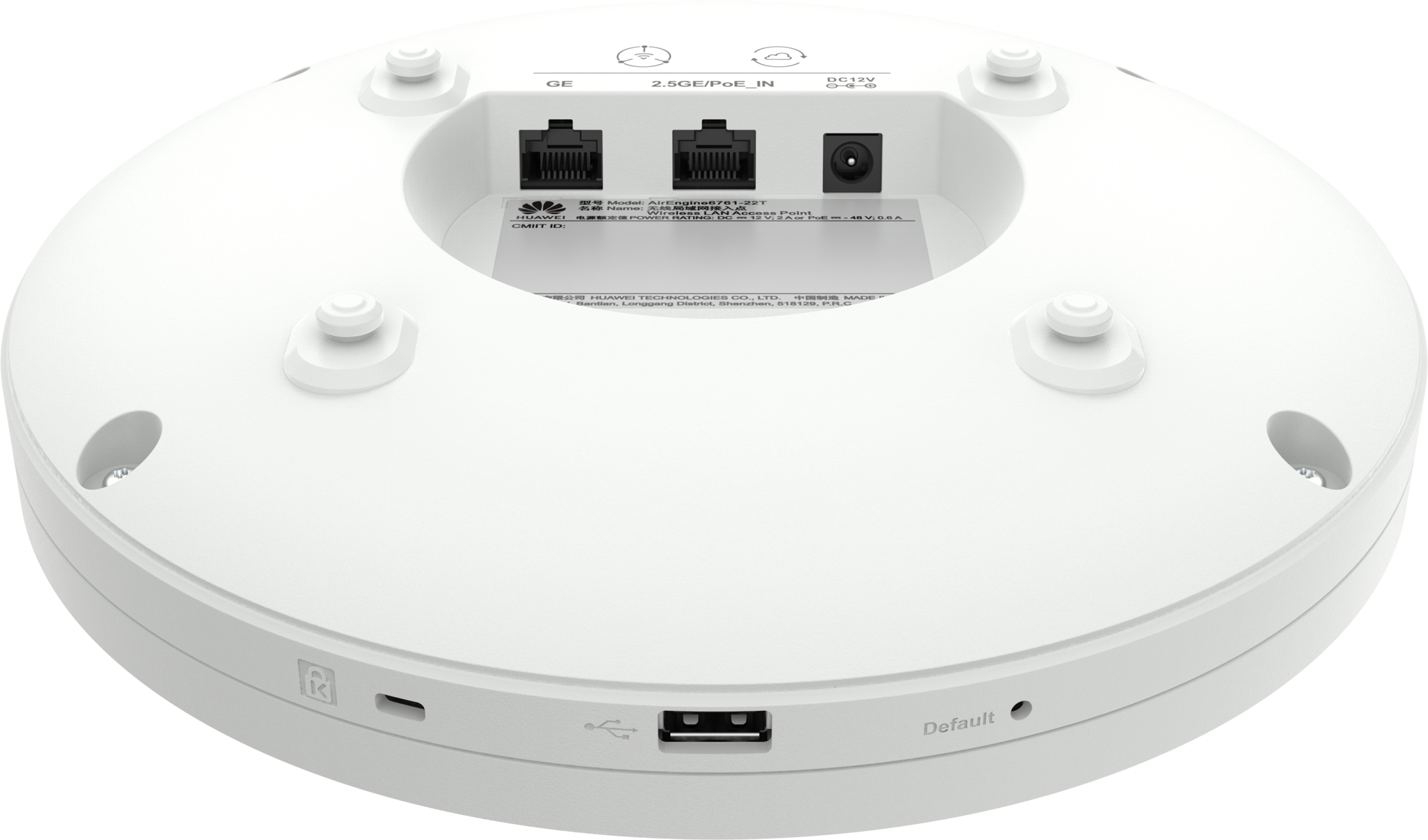

| Interface type | 1 x 10M/100M/1GE/2.5GE (RJ-45) 1 x 10M/100M/1GE (RJ-45) 1 x USB NOTE: 2.5GE supports PoE input. It is a GE port on the device (part number: 02353VUT) . | |
| Bluetooth | BLE 5.2 | |
| LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system. | |
| Power specifications | Power input | DC: 12V±10% PoE power supply: In compliance with 802.3at/af/bt. NOTE: When 802.3af power is supplied, the AP will operate with restrictions, for example the USB port is disabled, and the details refer to the Specification Query Tool. |
| Maximum power consumption | 17.9 W (excluding USB) NOTE: The actual maximum power consumption depends on local laws and regulations. | |
| Environmental specifications | Operating temperature | -10℃ to +50℃ |
| Storage temperature | -40°C to +70°C | |
| Operating humidity | 5% to 95% (non-condensing) | |
| Altitude | -60 m to +5000 m | |
| Atmospheric pressure | 53 kPa to 106 kPa | |
| Radio specifications | Antenna type | Built-in smart antennas |
| Antenna gain | 2.4GHz: 4dBi 5GHz: 5dBi NOTE: The gains above are the single-antenna peak gains. The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 2 dBi in 2.4 GHz or 3 dBi in 5 GHz. | |
| Maximum number of SSIDs for each radio | ≤ 16 | |
| Maximum number of users | ≤ 1024 (512/Radio) NOTE: The actual number of users varies according to the environment | |
| Maximum transmit power | 2.4GHz: 25dBm (combined power) 5GHz: 28dBm (combined power) NOTE: The actual transmit power depends on local laws and regulations. | |
| Power increment | 1 dBm |
