Huawei eKit AP673

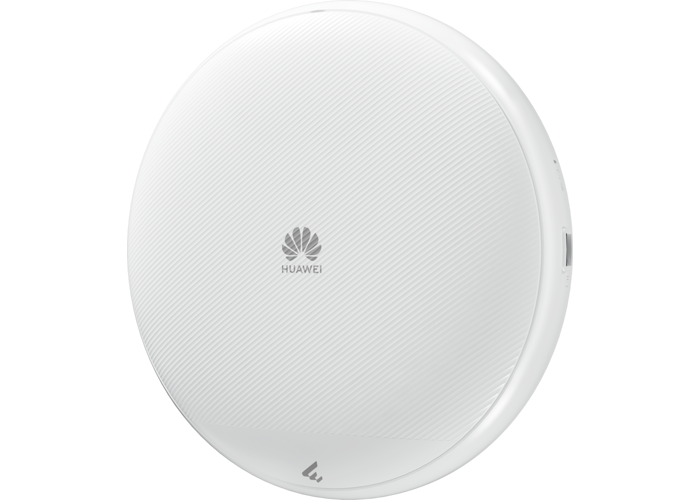

It is a next-generation indoor access point (AP) that complies with the Wi-Fi 7 (802.11be) standard. It supports eight spatial streams on the 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO), and 6 GHz (4x4 MIMO) frequency bands, delivering a data rate of up to 13.66 Gbps. It has built-in smart antennas, ensuring always-on signals for users. With the all-new Wi-Fi 7 technology, this AP can greatly improve users' wireless network experience. Compact in size, it can be flexibly deployed and saves customer TCO. These strengths make this AP ideal for indoor coverage scenarios such as small and midsize enterprise office, hospitals, and shopping malls and supermarkets. You can use the EasyWeb or wireless access controller (WAC) to locally deploy and manage APs, or use the HUAWEI eKit App & SNC platform to remotely manage and maintain APs. In this way, network projects can be handed over or managed together, simplifying network O&M.
| Technical Data | |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 51 mm (8.66 in. x 2.01 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 93 mm x 284 mm x 251 mm (3.66 in. x 11.18 in. x 9.88 in.) |
| Weight without packaging [kg(lb)] | 1.09 kg (2.40 lb) |
| Weight with packaging [kg(lb)] | 1.55 kg (3.42 lb) |
| Storage | NAND Flash 512 MB |
| Console port | Bluetooth console |
| Maximum power consumption [W] | 12.63 (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 43.1 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B |

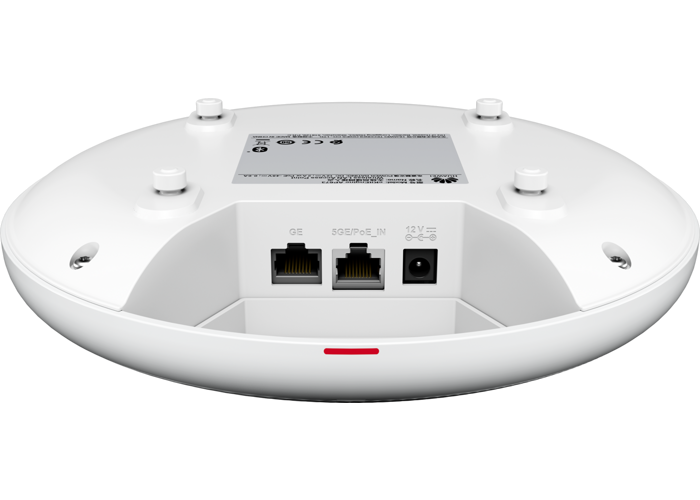

| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| USB | USB 2.0 |
| BLE | BLE5.2 |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi |
| Maximum transmit power | 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm |
| Singal radio transmit power [dBm] | 2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 147 year |
| MTTR [hour] | 0.5 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3bt power supply description | No function is limited. |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz) and 22 dBm (5 GHz). Wired network port: The GE/PoE_IN port is available, but the GE port is unavailable. Other ports: The USB port is unavailable. |
| DC power supply description | No function is limited. |
