S110-8P2ST
To see the prices, please log in or register here.
Article Nr 98012269

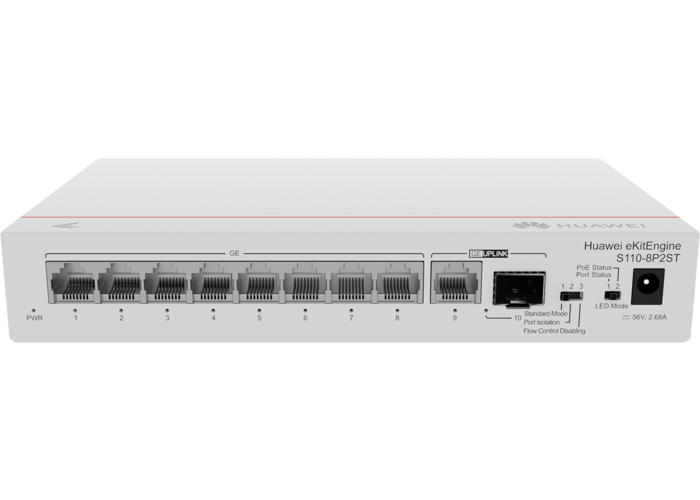

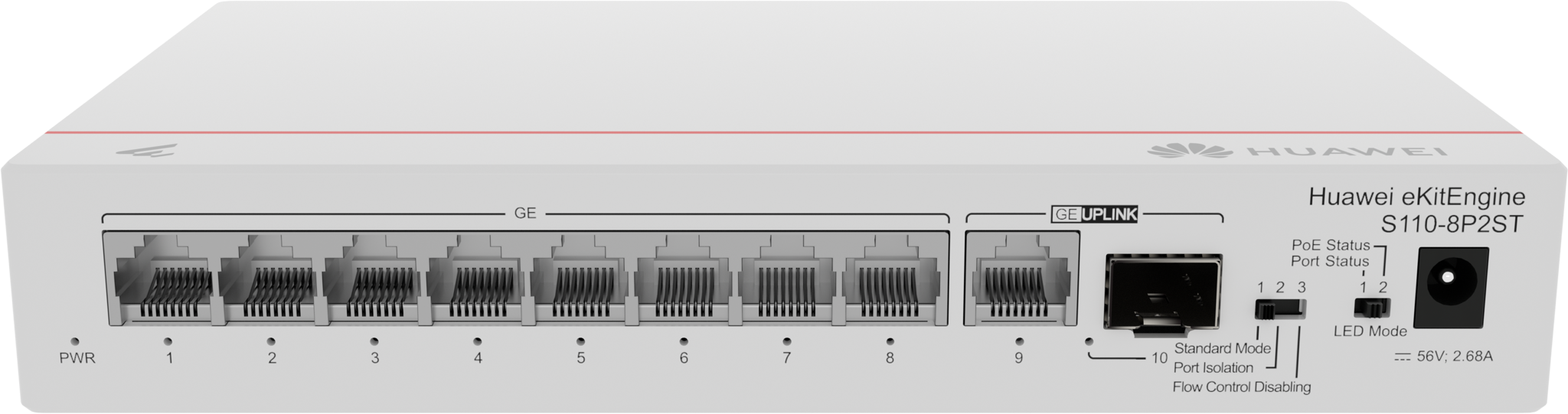

Huawei eKit S110-8P2ST
8 x 10/100/1000BASE-T ports, 1 x GE SFP port, 1 x 10/100/1000BASE-T port | PoE+ | Packet forwarding rate: 14.88 Mpps | Switching capacity: 20 Gbit/s
| Technical Data | |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 35 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 36.5 mm x 210.0 mm x 131.7 mm (1.44 in. x 8.27 in. x 5.19 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 150.0 mm x 270.0 mm x 200.0 mm (5.91 in. x 10.63 in. x 7.87 in.) |
| Chassis height [U] | 0.8 U |
| Chassis material | PC+ABS |
| Weight without packaging [kg(lb)] | 0.91 kg (2.01 lb) |
| Weight with packaging [kg(lb)] | 1.46 kg (3.22 lb) |
| Typical power consumption [W] | 11 W |
| Typical heat dissipation [BTU/hour] | 37.53 BTU/hour |
| Maximum power consumption [W] | Without PoE: 11 W Full PoE load: 155 W (PoE: 124 W) |
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 3 W |
| MTBF [years] | 78.77 years |
| MTTR [hours] | 2 hours |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Working mode |
|
| MAC address entry | 2K |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Power adapter |
| Rated input voltage [V] | Power adapter input: 170 V AC to 240 V AC; 50/60 Hz Power adapter output: 54 V DC |
| Input voltage range [V] | Power adapter input: 170 V AC to 264 V AC; 47 Hz to 63 Hz |
| Maximum input current [A] | 2.78 A |
| Memory | - |
| Flash memory | - |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±4 kV |
| Power supply surge protection [kV] | ±4 kV in differential mode and ±4 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Supported |
| Certification | EMC certification Safety certification Manufacturing certification |
