PAC600S12-EB
To see the prices, please log in or register here.
Article Nr 02312FFU-002

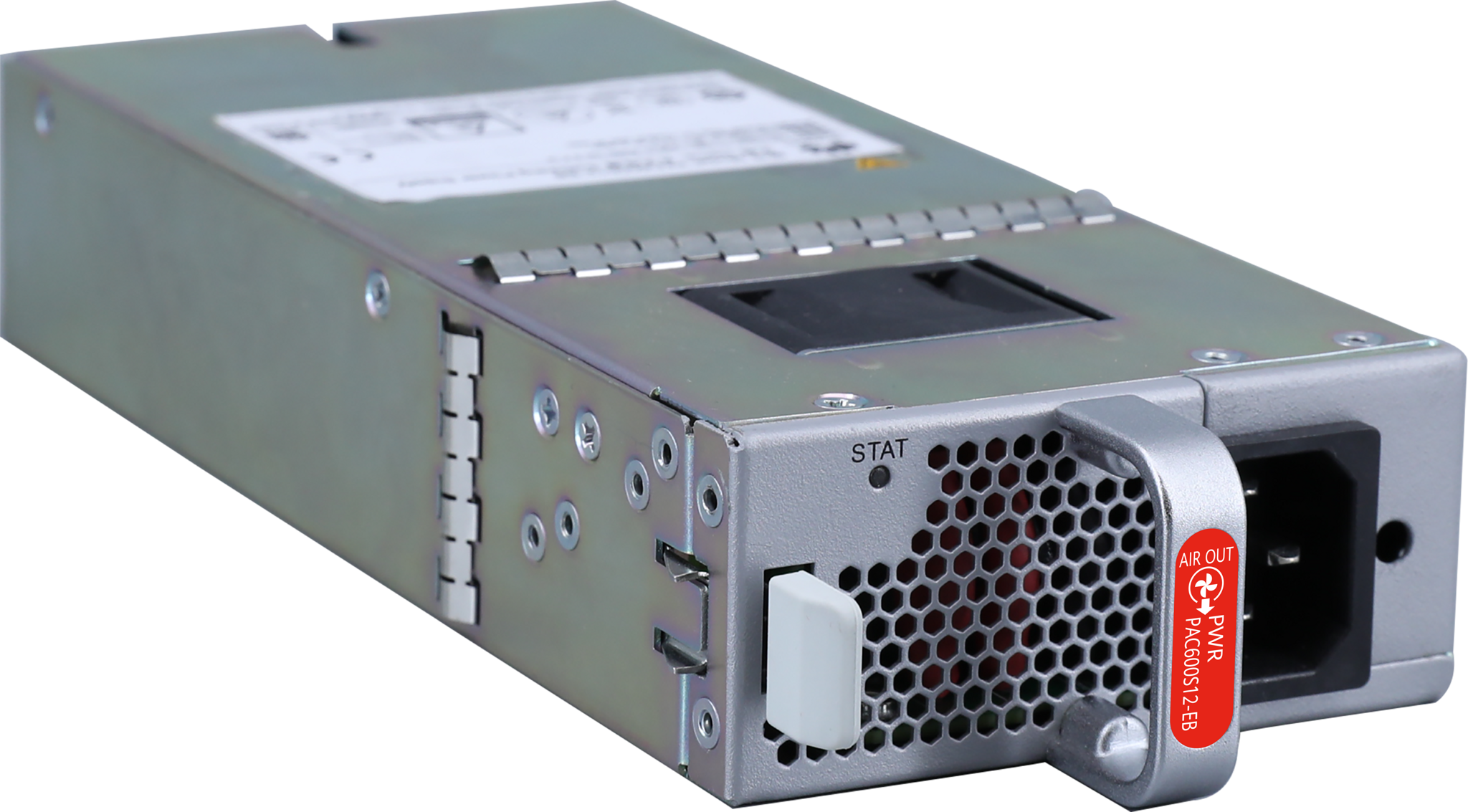

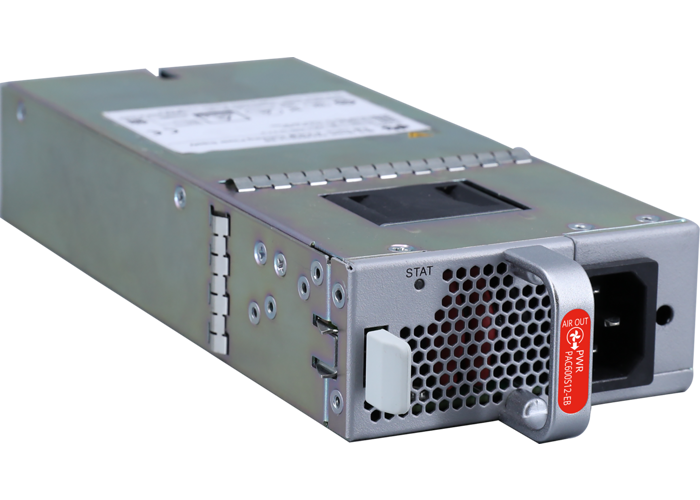

600W AC Power Module(Back to Front, Power panel side exhaust)
| Basic Information | |
| Part Number | 02312FFU-002 |
| Model | PAC600S12-EB |
| Description | 600W AC Power Module(Back to Front, Power panel side exhaust) |
| Technical Specifications | |
| Dimensions without packaging (H x W x D) [mm(in.)] | 39.8 mm x 90 mm x 214.5 mm (1.57 in. x 3.54 in. x 8.44 in.) |
| Weight without packaging [kg(lb)] | 0.985 kg (2.17 lb) |
| Input voltage range [V] | 90 V to 290 V |
| Rated output voltage [V] | 12 V |
| Rated input voltage [V] | 100V to 240V AC, support 240V HVDC |
| Maximum input current [A] | 8 A |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power supply efficiency | 0.91 |
| Type of power cables | C13 cable |
| Power dissipation Mode | Built-in fan |
