OMXD30010
To see the prices, please log in or register here.
Article Nr 02310WUU

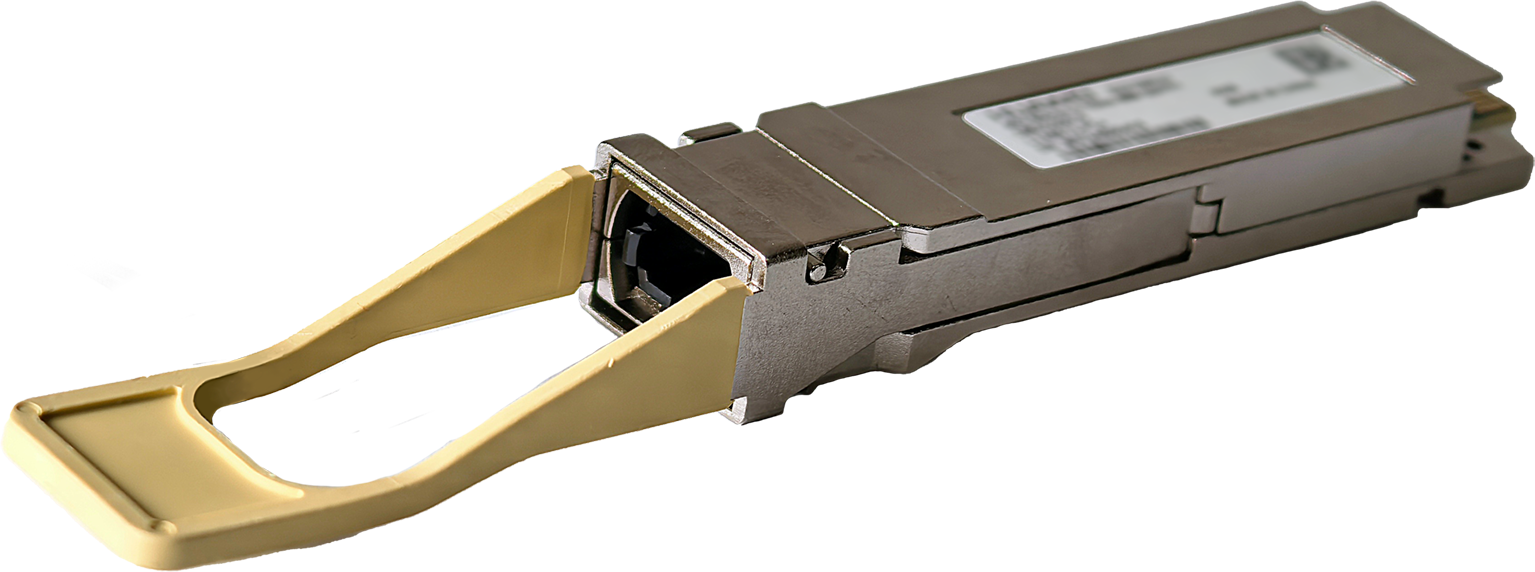

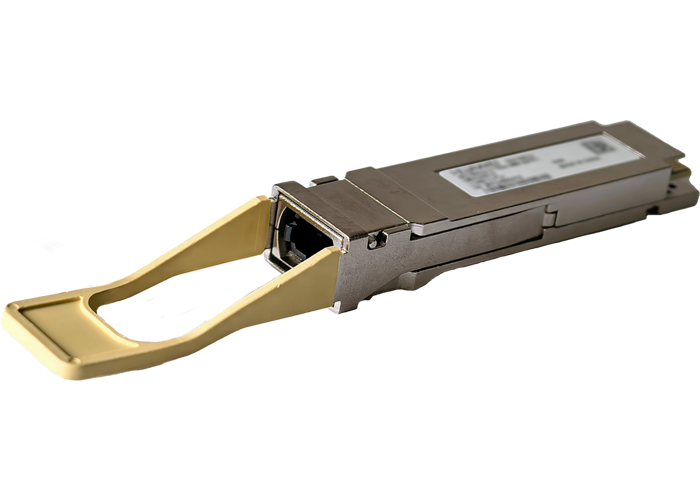

High Speed Transceiver,QSFP+,850nm,41.25Gbps,-7.6dBm,0.5dBm,-9.5dBm,MPO,MMF,0.15km
| Basic Information | |
| Part Number | 02310WUU |
| Model | OMXD30010 |
| Description | Optical Transceiver,QSFP+,850nm,41.25Gbps,-7.6dBm,-1dBm,-9.5dBm,MPO,MMF,0.15km |
| Level-1 category | 40Gbps QSFP+ Optical Module |
| Module name | 40Gbps(4*10.3)-QSFP+-MMF-850nm-0.1km-commercial |
| Technical Specifications | |
| Connector type | MPO-12 |
| Optical fiber type | MMF |
| Form factor | QSFP+ |
| Transmission rate [bit/s ] | 41.25 Gbit/s |
| Target transmission distance [km] | 0.1 km(OM3) 0.15 km(OM4) |
| Application standard | IEEE 802.3ba, 40GBASE-SR4 |
| Working case temperature [°C(°F)] | 0°C to 70°C(32°F to 158°F) |
| Center wavelength [nm] | 850 nm |
| Overload power (OMA) [dbm] | - |
| Overload power (AVG) [dbm] | per lane: 0.5 dBm |
| Minimum Tx optical power (OMA) [dbm] | per lane: -5.6 dBm |
| Minimum Tx optical power (AVG) [dbm] | per lane: -7.6 dBm |
| Maximum Tx optical power (OMA) [dbm] | per lane: 3 dBm |
| Maximum Tx optical power (AVG) [dbm] | per lane: 0.5 dBm |
| Minimum extinction ratio [db] | 3 dB |
| Rx operating wavelength range [nm] | 840 nm - 860 nm |
| Tx operating wavelength range [nm] | 840 nm - 860 nm |
| Rx sensitivity (AVG) [dbm] | - |
| Rx sensitivity (OMA) [dbm] | per lane: -9.5 dBm |
| DDM options | SFF-8436 |
| Bit error ratio (BER) | <1x10E-12 |
| Environment standard | RoHS |
| Security standard | FCC Class B, IEC 60825-1 Class 1 |
| ESD(HBM1) | 500 |
