QSFP-4SFP10G-CU5M
To see the prices, please log in or register here.
Article Nr 02310MUM

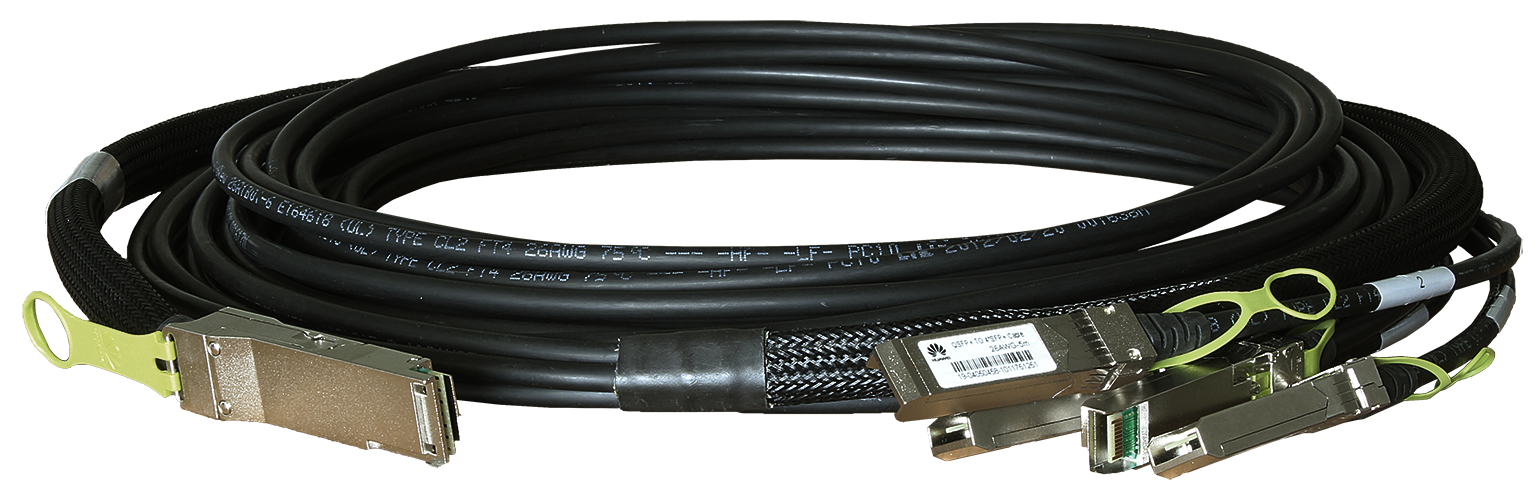

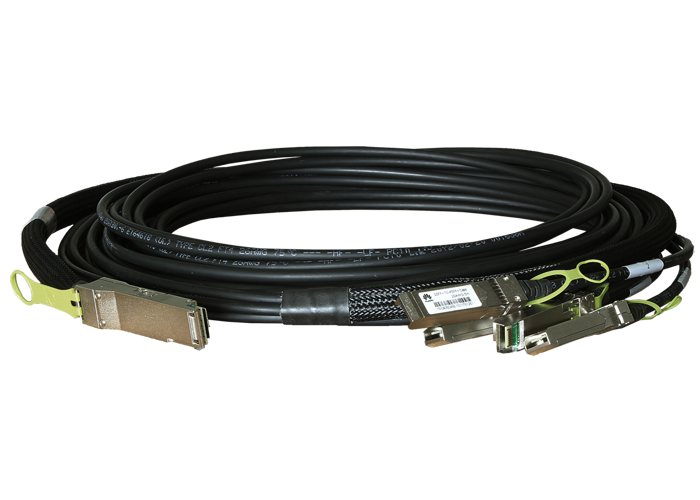

QSFP+,4SFP+10G,High Speed Direct-attach Cables,5m,QSFP+38M,CC8P0.4B(S),4*SFP+20M,Used indoor
| Basic Information | |
| Part Number | 02310MUM |
| Model | QSFP-4SFP10G-CU5M |
| Description | QSFP+,4SFP+10G,High Speed Direct-attach Cables,5m,QSFP+38M,CC8P0.4B(S),4*SFP+20M,Used indoor |
| Level-1 category | High Speed Cable |
| Technical Specifications | |
| Connector X1 | QSFP+ |
| Connector X2 | 4*SFP+ |
| Cable length [m (ft.)] | 5 (16.40) |
| Electrical attribute | Passive |
| Bend radius [mm (in.)] | 30 (1.18) |
| Minimum Clearance for Cable Routing [mm (in.)] | QSFP+ end: 100 mm (3.94 in.) SFP+ end: 60 mm (2.36 in.) |
