LS-5120V3-28S-PWR-LI-GL
To see the prices, please log in or register here.

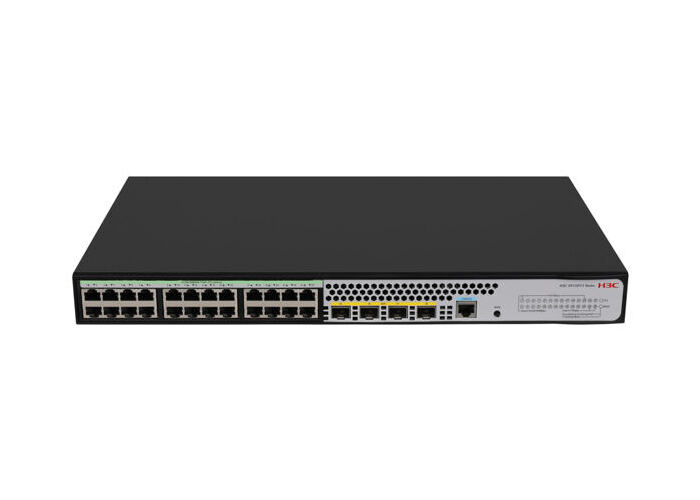

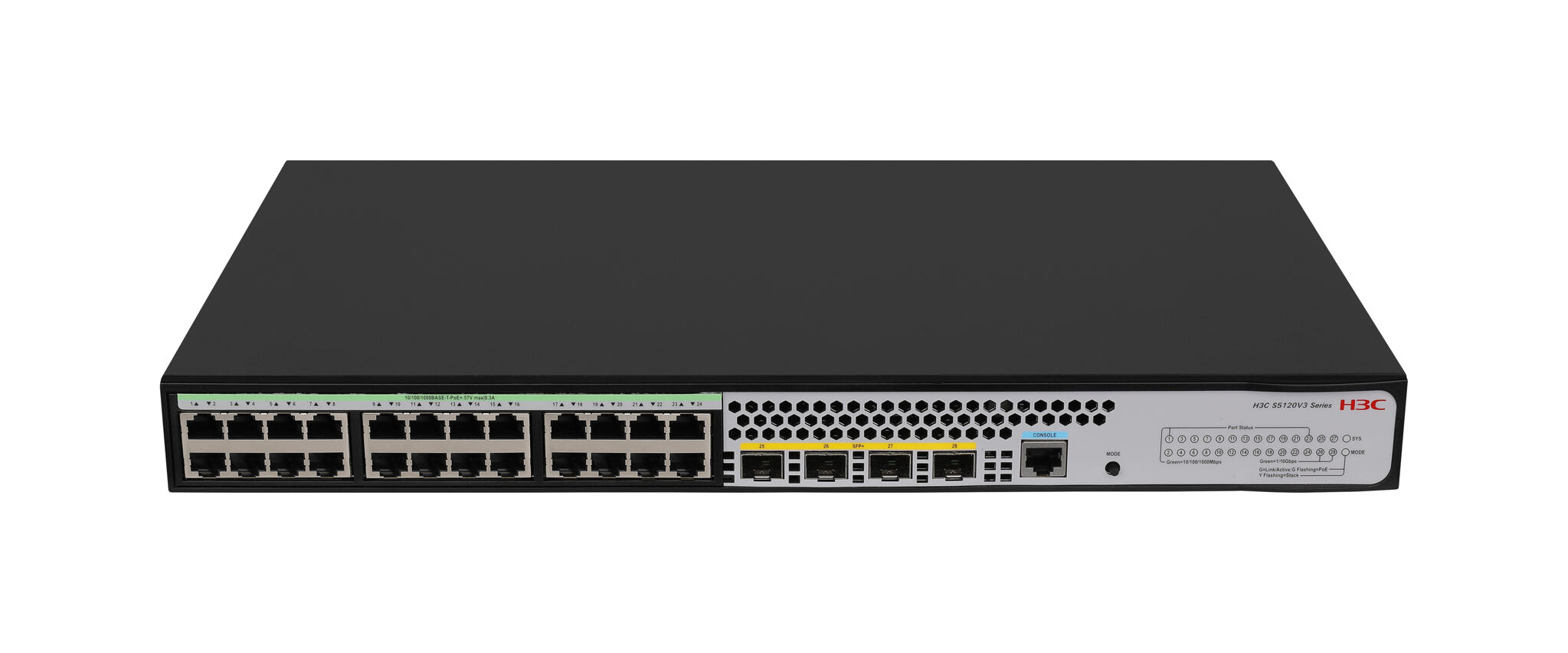

H3C S5120V3-LI Ethernet switch product
It is independently developed by New H3C Technologies Co., Ltd. (H3C). It is a second-generation smart managed switch designed for network environments that require high performance, high port density, and easy installation. H3C S5120V3-LI Ethernet switch provides 10/100/1000Base-T adaptive Ethernet ports or SFP/SFP+ optical ports. In enterprise networks, it can be used as an access device to provide Gigabit to desktops; in metropolitan area networks or networks of industrial users, it can provide Gigabit access to end users or tandem low-end switches downwards, and connect to high-capacity L3 switches through Gigabit fiber or link aggregation upwards. H3C S5120V3-LI Ethernet switch series supports the innovative Intelligent Resilient Framework (IRF) technology, which allows users to connect up to nine S5120V3-LI switches to form a logically independent entity to build a highly reliable, easily scalable, and manageable new intelligent network.
| Technical Data | |
| Switching capacity | 128Gbps |
| Forwarding capacity | 95.232Mpps |
| CPU | 1 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB |
| Dimensions (W × D × H) | 440×260×43.6 mm |
| Weight | ≤ 4.5 kg |
| Management port | 1 console port |
| Networking interface | 24×10/100/1000TX+ 4×SFP Plus |
| Maximum Stacking bandwidth | 80Gbps |
| Maximum stacking num | 9 |
| Port Surge | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. |
| Total power consumption | MIN: AC: 15W MAX: AC: 294W (PoE 240W) |
| Fan number | 1 |
| MTBF(Year) | 87.06 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing |
