LS-1850v2-52P-EI-GL
To see the prices, please log in or register here.
Article Nr 9801A40T

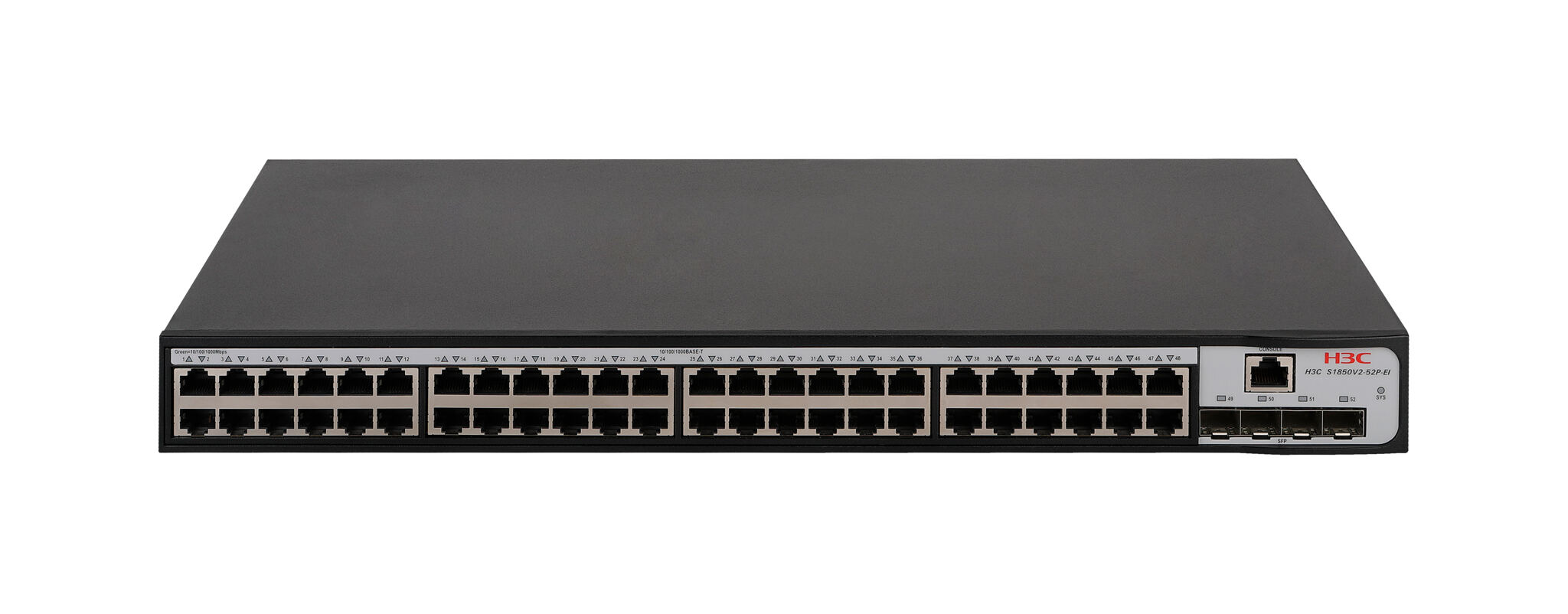

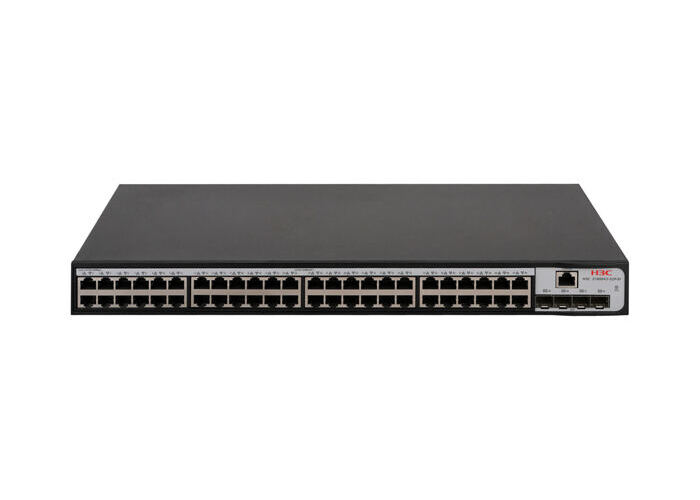

H3C S1850V2-EI series Ethernet switch
It is the Gigabit Web managed layer 2 switch with GE up-link ports, it is developed and designed by New H3C Technologies Co., Ltd. (H3C) especially for meeting high-performance network requirements. Based on the high-performance access, it offers abundant security access policies and enhanced network manageability and maintenance. This makes it ideal for diversified network building scenarios, including government, small and medium-sized enterprises, general and vocational education, security monitoring, and hotels.
| Technical Data | |
| Switching capacity | 104 Gbps |
| Forwarding capacity | 78 Mpps |
| CPU | 3 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB |
| Dimensions (W × D × H) | 440×230×43.6mm |
| Weight | ≤ 3.5 kg |
| Management port | 3 console port |
| Networking interface | 48 10/100/1000Base-T electrical ports |
| 4 1000Base-X SFP optical port | |
| Port Surge | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. |
| Total power consumption | MIN: |
| AC: 18W | |
| MAX: | |
| AC: 41W | |
| Fan number | 1 |
| MTBF(Year) | 115.68 |
| MTTR(Hour) | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) |
| -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) | |
| -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) | |
| Storage temperature | -40℃ ~ 70℃ |
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing |
