PAC60S12-AR
Um die Preise zu sehen, loggen Sie sich bitte ein oder registrieren Sie sich hier.
Artikel-Nr. 02312SLE

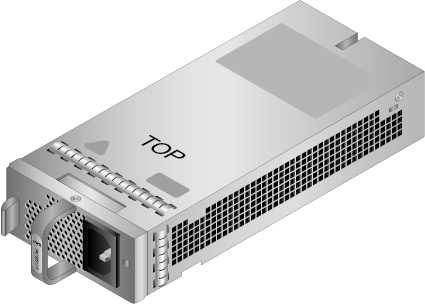

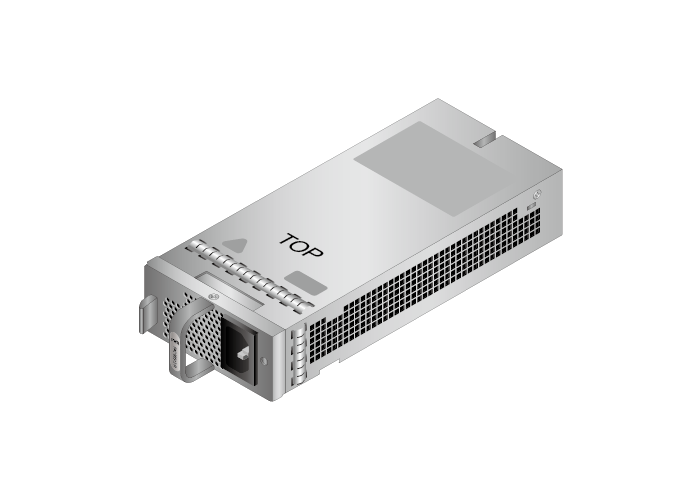

60W AC Power Module
| Basic Information | |
| Part Number | 02312SLE |
| Model | PAC60S12-AR |
| Description | 60 W AC&240 V DC Power Module |
| Technical Specifications | |
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
| Weight without packaging [kg(lb)] | 0.68 kg (1.5 lb) |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Rated output voltage [V] | 12 V |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz 240 V DC |
| Input voltage range [V] | 90 V AC to 264 V AC, 47 Hz to 63 Hz 190 V DC to 290 V DC |
| Maximum input current [A] | 100 V AC to 240 V AC: 2 A 240 V DC: 2 A |
| Rated output current [A] | 5 A |
| Rated output power [W] | 60 W |
| Hot swapping | Supported |
| Power dissipation Mode | Natural heat dissipation without fans |
