OGSC10DD0
Um die Preise zu sehen, loggen Sie sich bitte ein oder registrieren Sie sich hier.
Artikel-Nr. 02310LJH

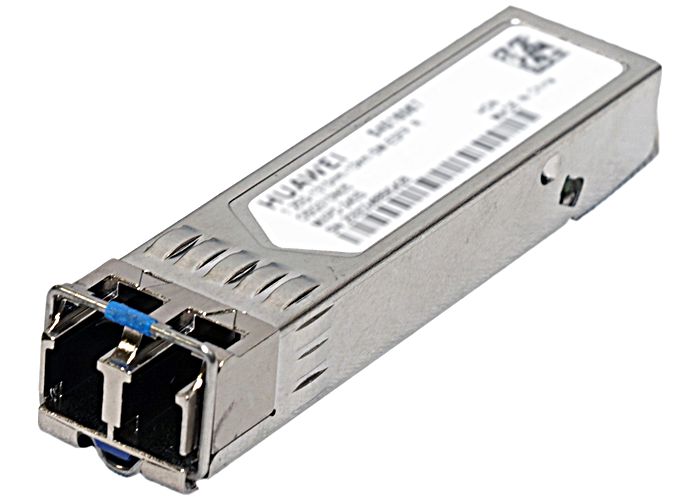

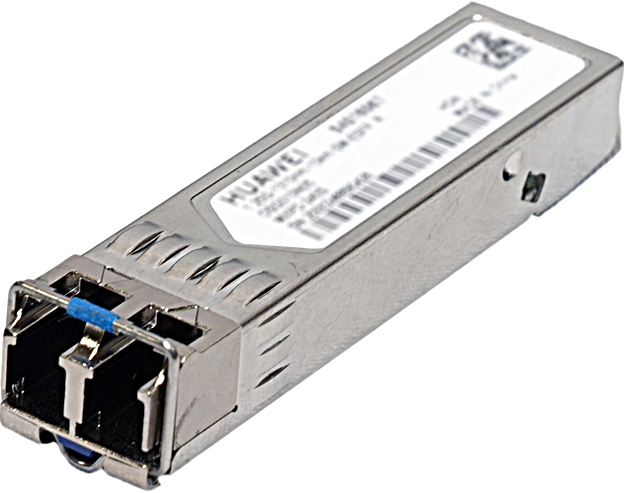

Optical Transceiver,eSFP(industry),1310nm,1.25Gb/s,-9.5~-3dBm,-20dBm,LC,single-mode,10km
| Basic Information | |
| Part Number | 02310LJH |
| Model | OGSC10DD0 |
| Description | Optical Transceiver,eSFP(industry),1310nm,1.25Gb/s,-9.5~-3dBm,-20dBm,LC,single-mode,10km |
| Level-1 category | GE eSFP Optical Modules,Industrial Optical Modules |
| Module name | OGSC10DD0 |
| Technical Specifications | |
| Connector type | LC |
| Optical fiber type | SMF |
| Form factor | eSFP |
| Transmission rate [bit/s] | 1 Gbit/s |
| Target transmission distance [km] | Single-mode fiber: 10 km |
| Application standard | 1000BASE-LX10/LH |
| Working case temperature [°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Center wavelength [nm] | 1310 |
| Overload power [dbm] | -3.0 |
| Minimum Tx optical power [dbm] | -9.0 |
| Maximum Tx optical power [dbm] | -3.0 |
| Minimum extinction ratio [db] | 9.5 |
| Rx sensitivity [dbm] | -19 |
