LS-6520X-10XT-SI
Um die Preise zu sehen, loggen Sie sich bitte ein oder registrieren Sie sich hier.
Artikel-Nr. 0235A3HK

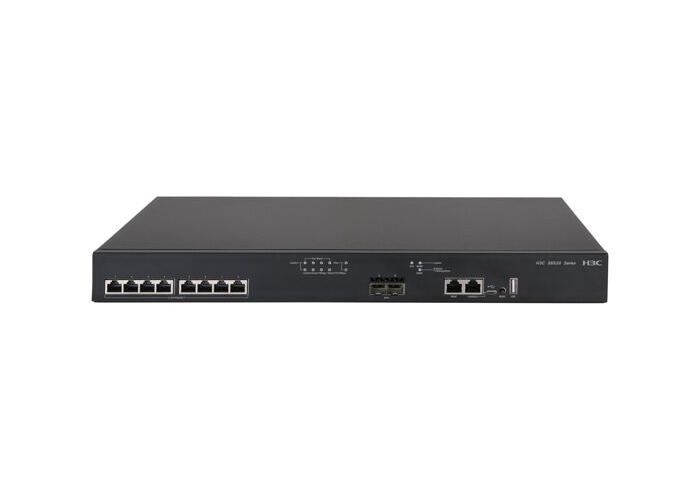

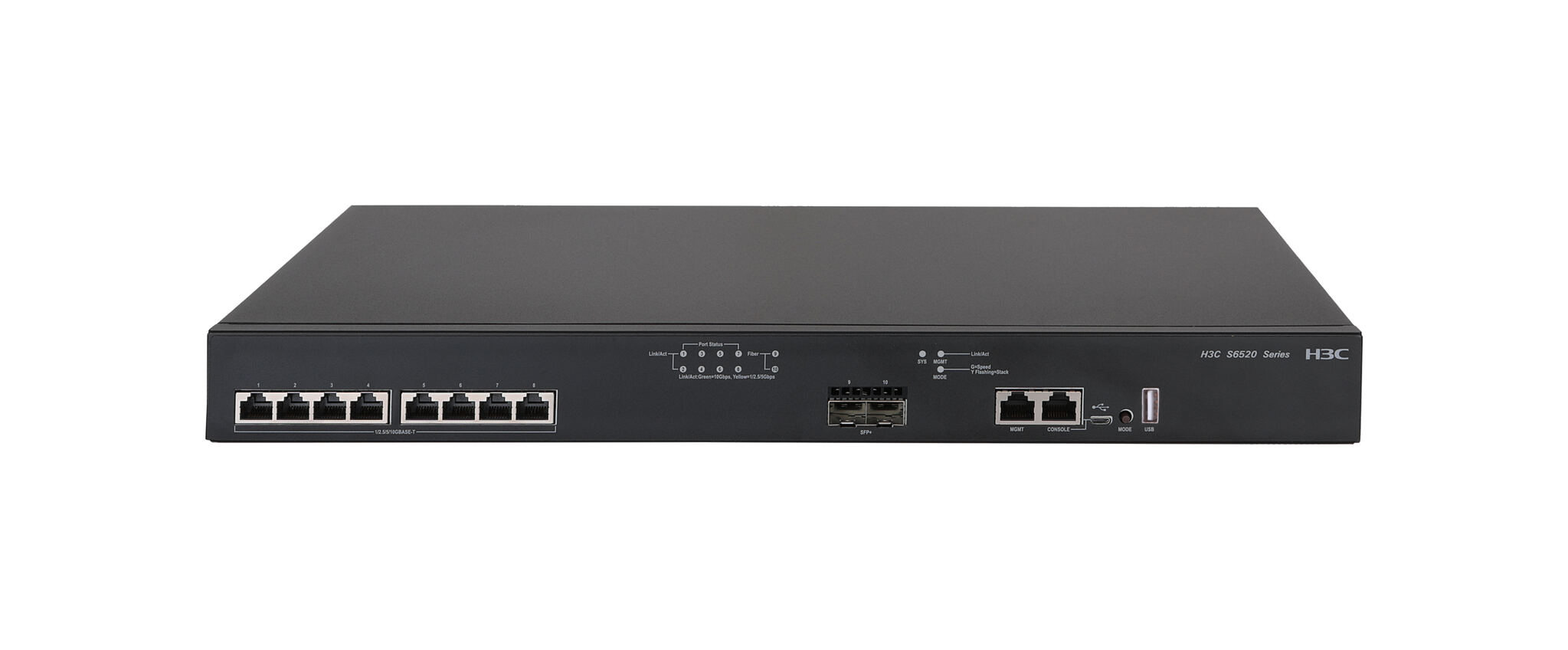

H3C S6520X-SI Series Switch-High performance
Der Switch und die skalierbare 10GE-Zugangs-Switching-Lösung mit fester Stromversorgung oder dualer steckbarer Stromversorgung, IRF-Funktion für Ausfallsicherheit. Die Serie bietet OSPF/BGP/ISIS und Multicast, SDN-fähig und flexible Verwaltung.
| Technical Data | |
| Port switching capacity | 200Gbps |
| Packet forwarding rate | 240Mpps |
| Box switching capacity | 1.44Tbps |
| CPU | Dual-Core, 1.6GHz |
| Flash/SDRAM | 1GB/2GB |
| Buffer | 3M |
| Dimensions (W×D×H) | 440×260× |
| 43.6mm | |
| Weight | ≤3.4kg |
| Service ports | 8×1G/2.5G/5G/10G Base-T Multi-giga ports + 2×1/10G SFP Plus |
| Console ports | 1 |
| Management Ethernet ports | 1 |
| USB ports | 1 |
| Expansion slots | N/A |
| Power Supply slots | N/A |
| Idle power consumption | AC: 17.5W |
| Max. power consumption | AC: 34.5W |
| Input voltage range | AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz |
| DC: -48V~-60V | |
| Operating temperature | 0ºC to 45ºC (32°F to 113°F) |
| -60m - 5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. | |
| Storage temperature | -40℃ to 70℃ (-40℉ to 158℉) |
| Operating & storage humidity | 5% RH to 95% RH, non-condensing |
| MTBF(Year) | 58.1 |
| MTTR(Hour) | 1 |
