Basic Information

Part Number

S4016067

Model

OSG010N05

Description

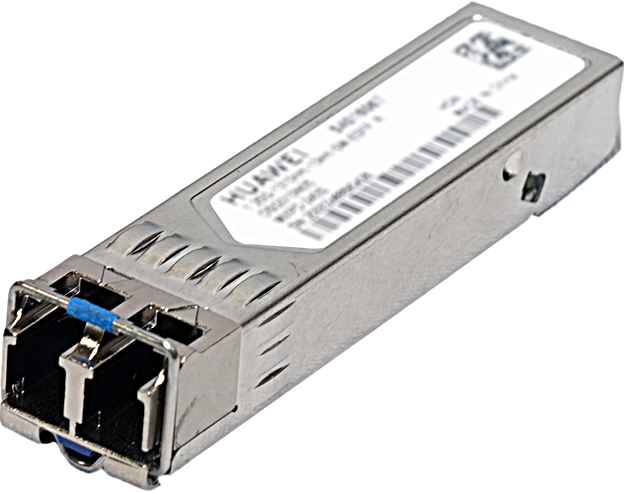

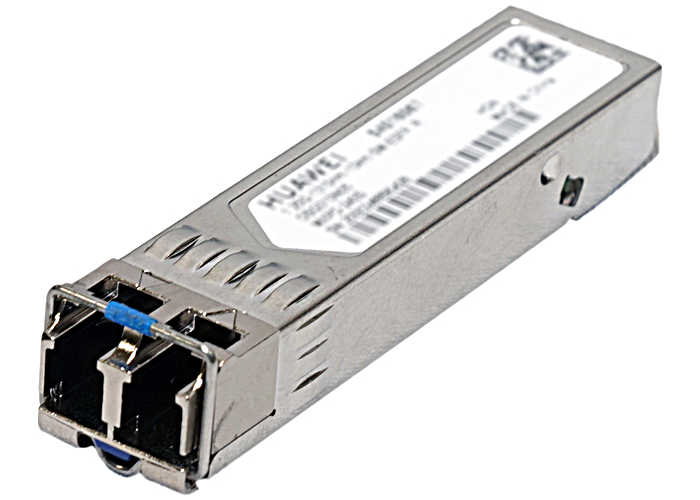

Optical transceiver(eSFP,1310nm,1.25Gb/s,-9dBm~-3dBm,-20dBm,LC,SM,10km)

Level-1 category

1.25Gbps eSFP Optical Module

Module name

1.25Gbps-eSFP-SMF-1310nm-10km-commercial

Technical Specifications

Connector type

LC

Optical fiber type

SMF

Form factor

eSFP

Transmission rate[bit/s ]

1.25 Gbit/s

Target transmission distance[km]

10 km

Application standard

IEEE 802.3, 1000BASE-LX10

Working case temperature[°C(°F)]

0°C to 70°C (32°F to 158°F)

Center wavelength[nm]

1310 nm

Overload power (OMA)[dbm]

-3 dBm

Overload power (AVG)[dbm]

-3 dBm

Minimum Tx optical power (OMA)[dbm]

-

Minimum Tx optical power (AVG)[dbm]

-9 dBm

Maximum Tx optical power (OMA)[dbm]

-

Maximum Tx optical power (AVG)[dbm]

-3 dBm

Minimum extinction ratio[db]

9.5 dB

Rx operating wavelength range[nm]

1270 nm - 1355 nm

Tx operating wavelength range[nm]

1270 nm - 1355 nm

Rx sensitivity (OMA)[dbm]

-

Rx sensitivity (AVG)[dbm]

-20 dBm

DDM options

SFF-8472

Bit error ratio (BER)

<1x10E-12

Environment standard

RoHS

Security standard

FCC Class B, IEC 60825-1 Class 1

ESD(HBM1)

500
